Mfr Part #:

R941920001

Mfr Name: Radiall

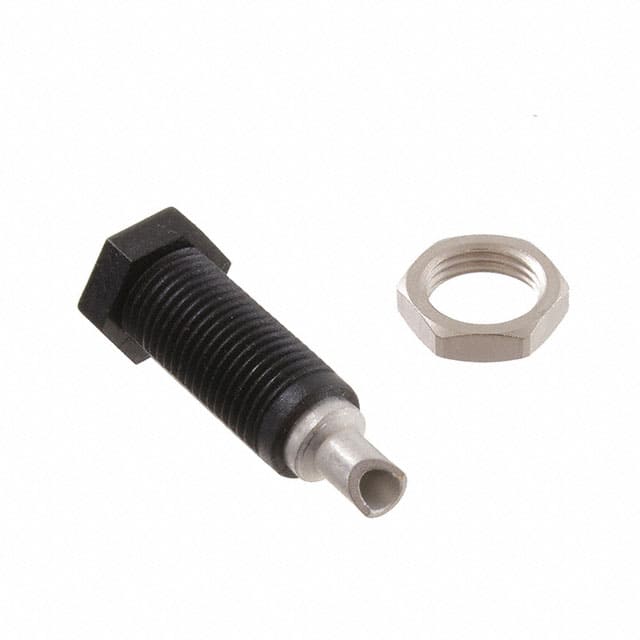

Radiall R941920001 is a female banana jack with panel mount, solder cup termination, and black color. It features hex nuts and mating end insulation.

✓ Total Stock: 6 pcs

$ Price Range: $3.04 - $5.29

R941920001 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	6 pcs On Request	6 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

R941920001 Description

Short technical summary and product information.

The Radiall R941920001 is a standard banana jack designed for panel mounting. It is a female connector with a solder cup termination, making it suitable for permanent wire connections. The jack is black in color and features hex nuts for secure panel attachment. The mating end is insulated, providing safety during use. This component is part of Radiall's R941 series of banana plugs and sockets. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The compact design allows for easy integration into test equipment, power supplies, or other interconnect applications. The solder cup termination facilitates reliable soldered connections. The panel mount style ensures a stable installation.

R941920001 Quick Information

Product Type: Banana Jack

Series: R941

Canonical Name: Banana Jack, Female, Panel Mount, Solder Cup, Black, Mating End Insulated, Standard Banana

Subcategory: Jacks, Plugs

R941920001 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

R941920001 Estimated Pricing

Qty	Low	High
1+	$5.29	$5.29
10+	$4.49	$4.49
25+	$4.21	$4.21
50+	$4.01	$4.01
100+	$3.82	$3.82
250+	$3.58	$3.58
500+	$3.41	$3.41
1,000+	$3.24	$3.24
2,500+	$3.04	$3.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

R941920001 Features

Female banana jack for panel mounting.
Solder cup termination for permanent connections.
Mating end insulated for safety.
Includes hex nuts for secure mounting.
Black color for easy identification.

R941920001 Applications

Used in test equipment and measurement probes.
Ideal for power supply output connections.
Suitable for breadboard or prototyping setups.
Common in audio and instrumentation applications.

R941920001 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the mounting type of the R941920001?

Panel mount.

What is the gender of this banana jack?

Female.

What termination style does it have?

Solder cup.

What color is the connector?

Black.

Does it have insulation?

Yes, the mating end is insulated.

What type of banana plug does it accept?

Standard banana plug.

What features are included?

Hex nuts for mounting.
