R7FS128783A01CNE#AC1 The Renesas R7FS128783A01CNE#AC1 is a 32-bit microcontroller featuring 256KB of FLASH program memory and 24KB of RAM. It operates at speeds up to 32MHz.
Mfr Part #:

R7FS128783A01CNE#AC1

Available from 2 distributors
Mfr Name: Renesas
Renesas
The Renesas R7FS128783A01CNE#AC1 is a 32-bit microcontroller featuring 256KB of FLASH program memory and 24KB of RAM. It operates at speeds up to 32MHz.
✓ Total Stock: 38,629 pcs
$ Price Range: $6.40

R7FS128783A01CNE#AC1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
37,272 pcs
On Request
37272 pcs On Request 1 On Request On Request On Request On Request On Request
Rayichip ✓
Non-Authorised Inventory information
1,357 pcs
On Request
1357 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R7FS128783A01CNE#AC1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

R7FS128783A01CNE#AC1 Description

Short technical summary and product information.

This Renesas microcontroller, part number R7FS128783A01CNE#AC1, is built on the ARM® Cortex®-M0+ core, offering a 32-bit processing architecture. It provides 256KB of FLASH program memory and 24KB of RAM, suitable for embedded applications.



The device operates within a voltage range of 1.6V to 5.5V and has an operating temperature range of -40°C to 105°C (TA). Key peripherals include DMA, LVD, POR, PWM, and WDT, along with connectivity options such as CANbus, DALI, I²C, SCI, SPI, UART/USART, and USB.

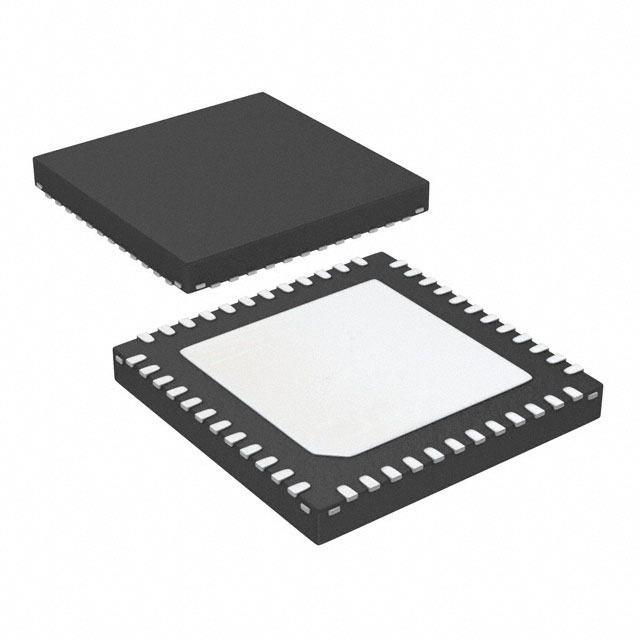

It features integrated data converters, including A/D 15x14b and D/A 3x8b. The microcontroller comes in a 48-WFQFN exposed pad package, designed for surface mounting. Its internal oscillator type simplifies design considerations.



This component is classified under microcontrollers and is suitable for various embedded systems requiring efficient processing and a range of communication interfaces.

R7FS128783A01CNE#AC1 Quick Information

Product Type: Microcontroller
Canonical Name: Renesas R7FS128783A01CNE#AC1 Microcontroller
Subcategory: Embedded

R7FS128783A01CNE#AC1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R7FS128783A01CNE#AC1 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

R7FS128783A01CNE#AC1 Features

  • 32-bit ARM Cortex-M0+ core processor.
  • 256KB FLASH program memory.
  • 24KB RAM size.
  • Operates at 32MHz speed.
  • Surface mountable 48-WFQFN package.

R7FS128783A01CNE#AC1 Applications

  • Suitable for embedded control systems.
  • Ideal for applications needing CANbus interface.
  • Supports various serial communication protocols.
  • Designed for low voltage operation.

R7FS128783A01CNE#AC1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the program memory size of the R7FS128783A01CNE#AC1?

The program memory size is 256KB (256K x 8).

What is the RAM size for this microcontroller?

The RAM size is 24K x 8.

What is the operating voltage range?

The operating voltage is 1.6V to 5.5V.

What is the operating temperature range?

The operating temperature is -40°C to 105°C (TA).

What type of package is the R7FS128783A01CNE#AC1 in?

It is in a 48-WFQFN Exposed Pad package.
