| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

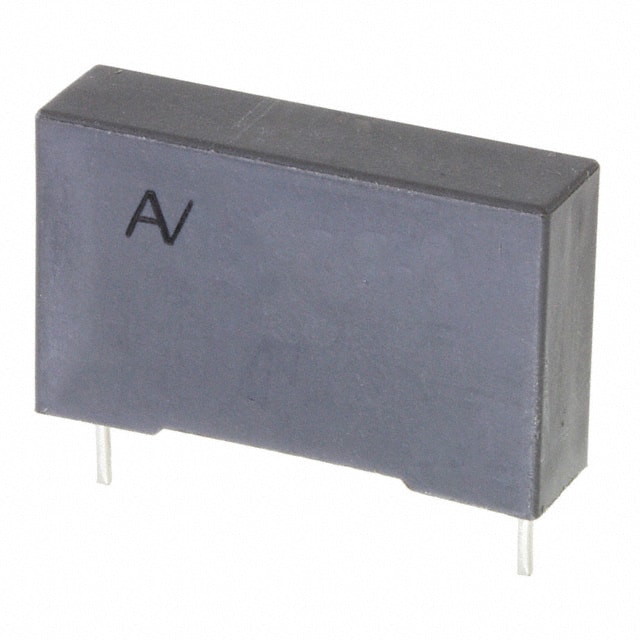

The KEMET R75IN41004040J is a metallized polypropylene film capacitor with a capacitance of 1 µF and a tolerance of ±5%. It is rated for 250V DC operation and features a radial through-hole package with PC pin terminations and a lead spacing of 22.50 mm. The dielectric material is polypropylene (PP), metallized, providing stable electrical characteristics.
This capacitor is designed for high-frequency switching, high pulse, and high dV/dt applications. It is AEC-Q200 qualified, making it suitable for automotive environments. The operating temperature range spans from -55°C to 105°C, ensuring reliable performance under extreme conditions.
The component measures 26.50 mm in length, 7.00 mm in width, and 16.10 mm in height. Its radial package allows for easy through-hole mounting on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
| 10+ | $0.83 | $0.83 |
| 100+ | $0.76 | $0.76 |
| 500+ | $0.65 | $0.65 |
| 1,000+ | $0.61 | $0.61 |
| 2,500+ | $0.59 | $0.59 |
| 5,000+ | $0.55 | $0.55 |
| 10,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 1 µF with a tolerance of ±5%.
The voltage rating is 250V DC.
The dielectric material is metallized polypropylene (PP).
It comes in a radial through-hole package with PC pin terminations and a lead spacing of 22.50 mm.
Yes, it is AEC-Q200 qualified.
The operating temperature range is -55°C to 105°C.
