Mfr Part #:

R73UI0330SE03J

Mfr Name: Yageo

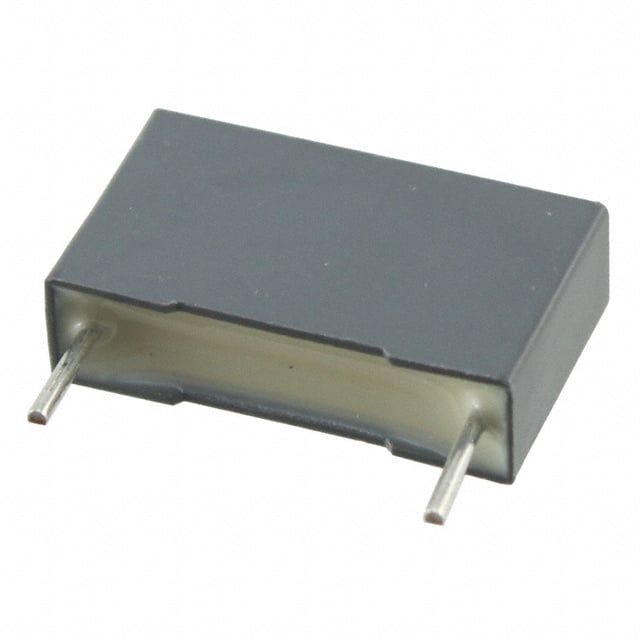

KEMET R73UI0330SE03J is a 330pF polypropylene film capacitor with ±5% tolerance and 2000V DC voltage rating. It features a radial through-hole package and is AEC-Q200 qualified for automotive applications.

✓ Total Stock: 302 pcs

$ Price Range: $0.46 - $1.33

R73UI0330SE03J Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ACK ELEKTRONIK ✓ Non-Authorised Inventory information	302 pcs On Request	302 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

R73UI0330SE03J Description

Short technical summary and product information.

The KEMET R73UI0330SE03J is a polypropylene film/foil capacitor from the R73 series, designed for pulse and high-frequency applications. It offers a capacitance of 330 pF with a tolerance of ±5% and a rated voltage of 2000 V DC. The capacitor is constructed with metallized polypropylene film and metal foil, providing self-healing properties and high reliability.

This component is suitable for resonant circuits, high-frequency high-current circuits, snubber circuits, and SCR/IGBT commutation circuits. It meets AEC-Q200 qualification for automotive applications up to 22.5 mm lead spacing. The operating temperature range is -55°C to +105°C.

The capacitor is housed in a radial through-hole package with a lead spacing of 15.00 mm. Dimensions are 18.00 mm length, 5.00 mm width, and 11.00 mm height. Terminations are PC pins. The device is RoHS compliant and has a moisture sensitivity level of 1 (unlimited).

R73UI0330SE03J Quick Information

Product Type: Film Capacitor

Series: R73

Canonical Name: KEMET R73 Series Polypropylene Film Capacitor, 330 pF, ±5%, 2000V DC, Radial

Subcategory: Pulse/High Frequency Capacitors

R73UI0330SE03J Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

R73UI0330SE03J Estimated Pricing

Qty	Low	High
1+	$1.33	$1.33
10+	$0.91	$0.91
100+	$0.66	$0.66
500+	$0.55	$0.55
1,000+	$0.51	$0.51
2,000+	$0.47	$0.47
4,000+	$0.46	$0.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

R73UI0330SE03J Features

330 pF capacitance with ±5% tolerance.
Rated for 2000V DC operation.
Polypropylene film/foil dielectric construction.
AEC-Q200 qualified for automotive applications.
Radial through-hole package with 15mm lead spacing.

R73UI0330SE03J Applications

Ideal for resonant circuit and high-frequency filtering.
Used in snubber circuits for SCR and IGBT commutation.
Suitable for DC link and DC filtering in automotive systems.
High pulse and DV/DT applications.

R73UI0330SE03J FAQs

7 frequently asked questions generated from this part’s specifications.

What is the capacitance value of the R73UI0330SE03J?

330 pF.

What is the voltage rating?

2000V DC (2kV).

What dielectric material is used?

Polypropylene (PP), metallized.

What is the capacitance tolerance?

±5%.

What is the package style and mounting type?

Radial through-hole with PC pin terminations and 15mm lead spacing.

Is this capacitor AEC-Q200 qualified?

Yes, it is AEC-Q200 qualified for automotive applications.

What is the operating temperature range?

-55°C to +105°C.

Category	Film Capacitors
Manufacturer Name	Yageo
AEC Qualified	Yes
Applications	Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Automotive Grade	Yes
Capacitance	330 pF
Dielectric Material	Polypropylene (PP), Metallized
Height	11.00mm (0.433")
Industrial Grade	No
Lead Spacing	15.00mm
Length	18.00mm (0.709")
Medical Grade	No
Military Grade	No
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 105°C
Ratings	AEC-Q200
Tape & Reel	No
Termination	PC Pins
Tolerance	±5%
Voltage Rating	2000V (2kV)
Width	5.00mm (0.197")
