| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,095 pcs
|
1095 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,095 pcs
|
1095 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The R6535KNX3C16 from ROHM Semiconductor is an N-Channel MOSFET designed for high-speed switching applications. It features a maximum drain-source voltage (Vdss) of 650V and a continuous drain current of 35A (Tc). The MOSFET has a maximum on-resistance (Rds On) of 115mOhm at 18.1A and 10V gate drive voltage.
This component utilizes MOSFET (Metal Oxide) technology and has a gate threshold voltage (Vgs(th)) of 5V at 1.3mA. The maximum gate-to-source voltage (Vgs) is ±20V. It has an input capacitance (Ciss) of 3000 pF at 25V and a gate charge (Qg) of 72 nC at 10V.

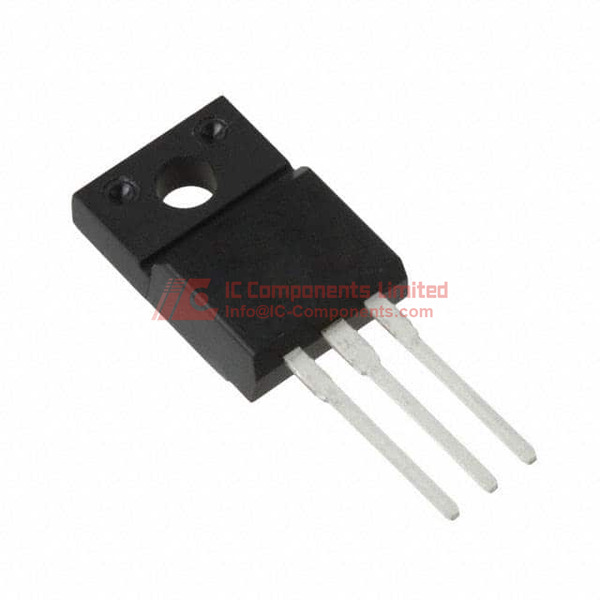

The R6535KNX3C16 is packaged in a TO-220AB configuration, suitable for through-hole mounting. It has a maximum power dissipation of 370W (Tc) and an operating temperature range of 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 650 V.
The continuous drain current is 35A (Tc).
The maximum on-resistance (Rds On) is 115mOhm at 18.1A and 10V.
It is supplied in a TO-220AB package.
The operating temperature range is up to 150°C (TJ).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
