| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,497 pcs
|
1497 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Inductance | |
| Insulation Resistance | |
| Lead Diameter | |
| Lead Length | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum dV/dt | |
| Mounting Type | |
| Operating Temperature | |
| Rated Temperature | |
| Ratings | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Tolerance | |
| Typical Component Weight | |
| Voltage Rating | |
| Voltage Rating AC | |
| Width |

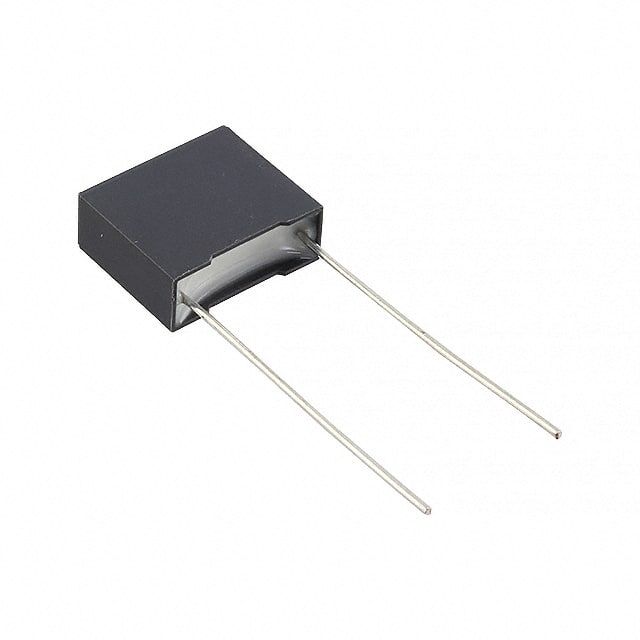

The KEMET R60EF4150506AK is a metallized polyester (PET) film capacitor from the R60 series, designed for automotive and DC multipurpose applications. It offers a capacitance of 1.5 µF with ±10% tolerance and a DC voltage rating of 100 VDC (63 VAC). The capacitor is AEC-Q200 qualified, ensuring reliability in harsh automotive environments.
Key electrical characteristics include a dissipation factor of 1% at 1 kHz, insulation resistance of 833.3 MΩ, maximum dV/dt of 75 V/µs, and inductance of 9 nH. The operating temperature range is -55°C to 105°C, with a rated temperature of 85°C. Above 85°C, DC and AC voltage derating is 1.25%/°C.
The capacitor is housed in a radial through-hole package with dimensions 13.00 mm length, 5.00 mm width, and 11.10 mm height. Lead spacing is 10.00 mm, lead length 25 mm, and lead diameter 0.6 mm. Termination is tinned wire (PC pins). Typical component weight is 1.207 g. Packaging is bulk bag with a standard quantity of 1500 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.35 | $1.35 |
| 10+ | $0.91 | $0.91 |
| 100+ | $0.67 | $0.67 |
| 500+ | $0.55 | $0.55 |
| 1,000+ | $0.46 | $0.46 |
| 1,500+ | $0.43 | $0.43 |
| 4,500+ | $0.43 | $0.43 |
| 10,500+ | $0.40 | $0.40 |
| 24,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.5 µF.
100 VDC and 63 VAC.
Metallized polyester (PET) stacked.
±10%.
Radial through-hole with 10 mm lead spacing.
-55°C to 105°C.
Yes, it is AEC-Q200 qualified for automotive applications.
