R6042JNZ4C13 The ROHM Semiconductor R6042JNZ4C13 is an N-Channel MOSFET designed for high voltage applications. It features a 600V drain-source voltage and a continuous current rating of 42A.
Mfr Part #:

R6042JNZ4C13

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor R6042JNZ4C13 is an N-Channel MOSFET designed for high voltage applications. It features a 600V drain-source voltage and a continuous current rating of 42A.
✓ Total Stock: 1,423 pcs
$ Price Range: $2.27

R6042JNZ4C13 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,423 pcs
On Request
1423 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R6042JNZ4C13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Supplier Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

R6042JNZ4C13 Description

Short technical summary and product information.

The R6042JNZ4C13 from ROHM Semiconductor is an N-Channel MOSFET with a robust 600V drain-to-source voltage rating. This device is capable of handling a continuous drain current of 42A at a case temperature (Tc) and offers a maximum power dissipation of 495W (Tc).



Designed with a MOSFET (Metal Oxide) technology, it operates within a temperature range of -55°C to 150°C (TJ). The MOSFET features a gate threshold voltage of 7V at 5.5mA and requires a gate drive voltage of 15V for its rated on-resistance. The maximum on-resistance (Rds On) is specified at 104mOhm when conducting 21A with a 15V gate-source voltage.

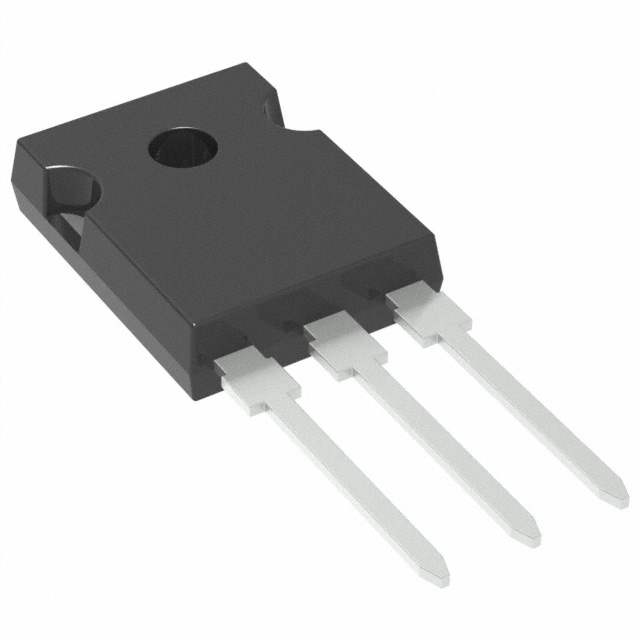

This component is housed in a TO-247G package, suitable for through-hole mounting. Its input capacitance (Ciss) is rated at 3500pF at 100V, and the maximum gate charge (Qg) is 100nC at 15V. The maximum gate-source voltage is ±30V.



The R6042JNZ4C13 is RoHS3 compliant and has an MSL rating of 1.

R6042JNZ4C13 Quick Information

Product Type: MOSFET
Canonical Name: ROHM Semiconductor R6042JNZ4C13 N-Channel MOSFET
Subcategory: N-Channel

R6042JNZ4C13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R6042JNZ4C13 Estimated Pricing

Qty Low High
1+ $2.27 $2.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

R6042JNZ4C13 Features

  • 600V drain-source voltage rating.
  • 42A continuous drain current.
  • Low on-resistance of 104mOhm.
  • TO-247G package for through-hole mounting.
  • RoHS3 compliant.

R6042JNZ4C13 Applications

  • Used in high-voltage power switching circuits
  • Suitable for industrial motor drives
  • Ideal for power supply regulation
  • Applicable in high-power switching applications

R6042JNZ4C13 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the R6042JNZ4C13?

The maximum drain-source voltage (Vdss) is 600V.

What is the continuous drain current rating?

The continuous drain current is 42A.

What is the maximum on-resistance of this MOSFET?

The maximum on-resistance (Rds On) is 104mOhm at 21A and 15Vgs.

What is the operating temperature range?

The operating temperature range is -55°C to 150°C (TJ).

What package type is the R6042JNZ4C13 in?

It is supplied in a TO-247G package.

How is the R6042JNZ4C13 mounted?

It is designed for through-hole mounting.
