| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The ROHM Semiconductor R6024ENZ1C9 is a high-performance N-Channel MOSFET. It features a maximum drain-source voltage of 600V and a continuous drain current of 24A at a case temperature (Tc).

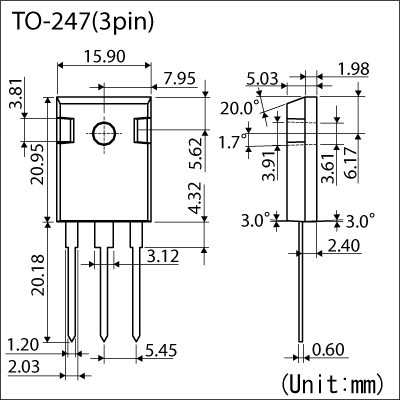

This MOSFET utilizes Metal Oxide Semiconductor (MOS) technology and is designed for through-hole mounting in a TO-247-3 package. Key electrical characteristics include an input capacitance of 1650 pF at 25V, a gate charge of 70 nC at 10V, and a maximum on-resistance (Rds On) of 165mOhm at 11.3A and 10V.
The device has a maximum gate-to-source voltage (Vgs) of ±20V and a gate threshold voltage (Vgs(th)) of 4V at 1mA. It can dissipate up to 120W of power at the case temperature and operates within a junction temperature range of -55°C to 150°C.
With its robust specifications, the R6024ENZ1C9 is suitable for various power switching applications requiring high voltage and current handling capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) for the R6024ENZ1C9 is 600V.
The R6024ENZ1C9 has a continuous drain current rating of 24A at the case temperature (Tc).
The R6024ENZ1C9 is supplied in a TO-247-3 package.
The maximum operating junction temperature (TJ) for the R6024ENZ1C9 is 150°C.
The R6024ENZ1C9 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the R6024ENZ1C9 is 1 Unlimited.
