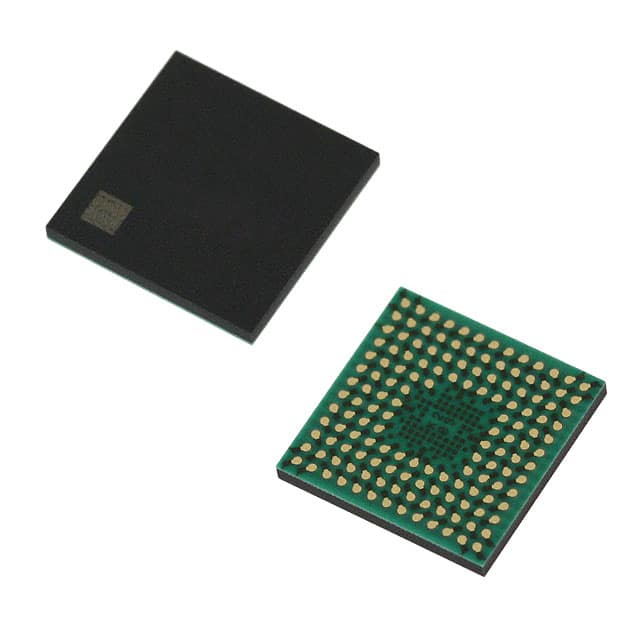

R5F562N8BDLE#U0 The R5F562N8BDLE#U0 is a 32-bit microcontroller from Renesas featuring 512KB Flash memory and a 145-TFLGA package.
Mfr Part #:

R5F562N8BDLE#U0

Available from 3 distributors
Mfr Name: Renesas
Renesas
The R5F562N8BDLE#U0 is a 32-bit microcontroller from Renesas featuring 512KB Flash memory and a 145-TFLGA package.
✓ Total Stock: 10,861 pcs
$ Price Range: $6.40

R5F562N8BDLE#U0 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
9,152 pcs
On Request
9152 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request 1824+ On Request On Request
Seba Components ✓
Non-Authorised Inventory information
709 pcs
On Request
709 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R5F562N8BDLE#U0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of I
Number of I/O
Operating Temperature
Oscillator Type
Package / Case
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Tape & Reel
Voltage
Voltage Supply
View Similar Products (0)

R5F562N8BDLE#U0 Description

Short technical summary and product information.

The R5F562N8BDLE#U0 is an embedded microcontroller manufactured by Renesas. It features a 32-bit RX core processor operating at 100MHz, with 512KB of Flash program memory and 8x10-bit and 8x12-bit A/D converters, along with 2x10-bit D/A converters. The device supports a supply voltage range of 2.7V to 3.6V and operates within a temperature range of -40°C to 85°C. It includes 103 I/O pins and peripherals such as DMA, LCD, LVD, POR, PWM, and WDT. The package type is 145-TFLGA (9x9mm), suitable for surface mounting in compact applications. This microcontroller is used in embedded systems requiring high integration, multiple peripherals, and reliable operation in industrial or consumer electronics.

R5F562N8BDLE#U0 Quick Information

Product Type: Microcontroller
Canonical Name: IC MCU 32BIT 512KB FLSH 145TFLGA

R5F562N8BDLE#U0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R5F562N8BDLE#U0 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

R5F562N8BDLE#U0 Features

  • 512KB Flash memory for program storage
  • 103 I/O pins for versatile interfacing
  • Operates at 2.7V to 3.6V supply voltage
  • 145-TFLGA package for surface mounting
  • Includes DMA, LCD, WDT peripherals

R5F562N8BDLE#U0 Applications

  • Embedded control systems in industrial equipment
  • Consumer electronics requiring compact microcontrollers
  • Automation and sensor interface applications
  • Devices needing reliable operation over -40°C to 85°C

R5F562N8BDLE#U0 FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the R5F562N8BDLE#U0?

The operating voltage range is 2.7V to 3.6V.

What package does the R5F562N8BDLE#U0 come in?

It comes in a 145-TFLGA (9x9mm) package.

What is the operating temperature range for this microcontroller?

-40°C to 85°C.
