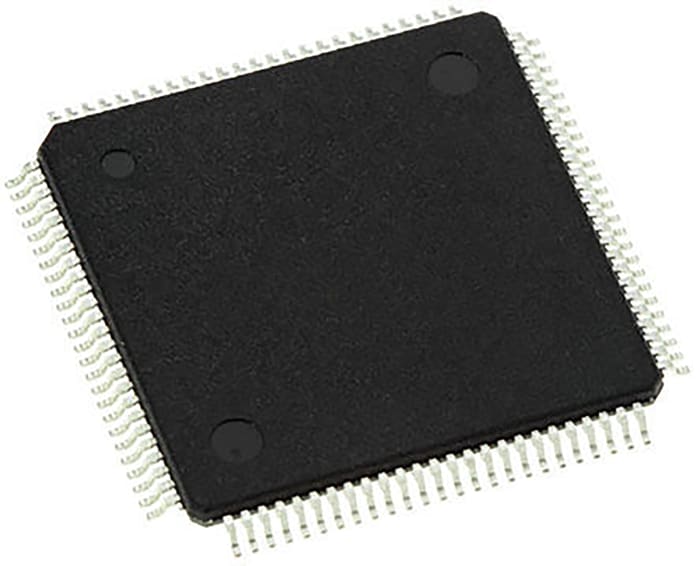

R5F52317ADFP#30 The Renesas Electronics R5F51317ADFP#30 is a 32-bit RX231 microcontroller. It operates at a maximum frequency of 54MHz and features 384kB of FLASH program memory.
Mfr Part #:

R5F52317ADFP#30

Available from 2 distributors
Mfr Name: RNS
RNS
The Renesas Electronics R5F51317ADFP#30 is a 32-bit RX231 microcontroller. It operates at a maximum frequency of 54MHz and features 384kB of FLASH program memory.
✓ Total Stock: 10,165 pcs

R5F52317ADFP#30 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 22+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
165 pcs
On Request
165 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R5F52317ADFP#30 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Failure Rate
Height
Length
Program Memory Size
Program Memory Type
RAM Size
Width
View Similar Products (0)

R5F52317ADFP#30 Description

Short technical summary and product information.

The Renesas Electronics R5F51317ADFP#30 is a 32-bit RX231 microcontroller designed for general-purpose applications. It features a 54MHz RXv2 core with FPU support and can deliver up to 88.56 DMIPS. The device offers 384kB of FLASH program memory and 64kB of RAM.



Key peripherals include a real-time clock with battery backup, up to 24-channel capacitive touch interface, and various serial communication interfaces such as I²C, SPI, USB, CAN, SSI, and SDHI. Security features include AES-128/256 encryption, and memory protection. The microcontroller also includes a temperature sensor, clock frequency accuracy measurement circuit, and data operation circuit for RAM testing.



This microcontroller is housed in a 100-Pin LQFP package with surface mount type. It operates within a supply voltage range of 1.8V to 5.5V and has an operating temperature range of -40°C to 85°C. The dimensions are 14.1mm in length and width, with a height of 1.55mm.

R5F52317ADFP#30 Quick Information

Product Type: Microcontroller
Series: RX231
Canonical Name: Renesas Electronics R5F51317ADFP#30 Microcontroller
Subcategory: Embedded Microcontrollers

R5F52317ADFP#30 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R5F52317ADFP#30 Features

  • 32-bit RXv2 core with FPU
  • 54MHz maximum clock frequency
  • 384kB FLASH program memory
  • 64kB RAM
  • 100-Pin LQFP package

R5F52317ADFP#30 Applications

  • Ideal for industrial control and automation.
  • Used in capacitive touch sensing applications.
  • Suitable for motor control systems.
  • Supports secure communication with AES encryption.
  • Designed for sensor interfacing and data acquisition.

R5F52317ADFP#30 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the program memory size of the R5F51317ADFP#30?

The program memory size is 384kB.

What is the maximum clock frequency for this microcontroller?

The maximum clock frequency is 54MHz.

What is the RAM size of the R5F51317ADFP#30?

The RAM size is 64kB.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package type is the R5F51317ADFP#30 available in?

It is available in a 100-Pin LQFP package.
