| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,053 pcs
|
12053 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,860 pcs
|
2860 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

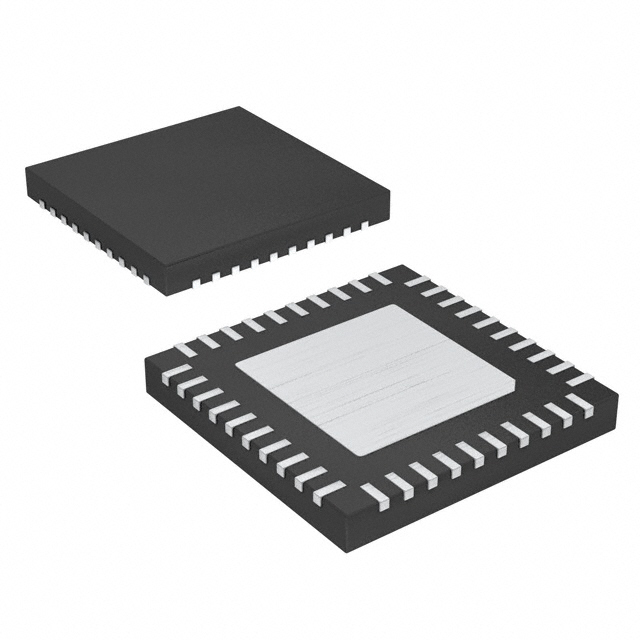

The Renesas R5F51113ADNF#UA is a high-performance 32-bit microcontroller based on the RX core processor. It offers 64KB of Flash program memory and 10KB of RAM, making it suitable for various embedded applications.
This device operates at a speed of 32MHz and supports a wide supply voltage range from 1.8V to 3.6V. It features integrated peripherals such as DMA, LVD, POR, PWM, and WDT, along with an internal oscillator for simplified design.
Connectivity options include I²C, SCI, SPI, and USB interfaces, facilitating integration into complex systems. The microcontroller is equipped with an 8-channel, 12-bit A/D converter for data acquisition. It is housed in a 40-HWQFN (6x6) package suitable for surface mounting.
The R5F51113ADNF#UA is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 64KB (64K x 8).
The RAM size is 10K x 8.
The operating voltage range is 1.8V to 3.6V.
The operating temperature range is -40°C to 85°C (TA).
It is in a 40-WFQFN Exposed Pad package.
