| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,013 pcs
|
3013 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

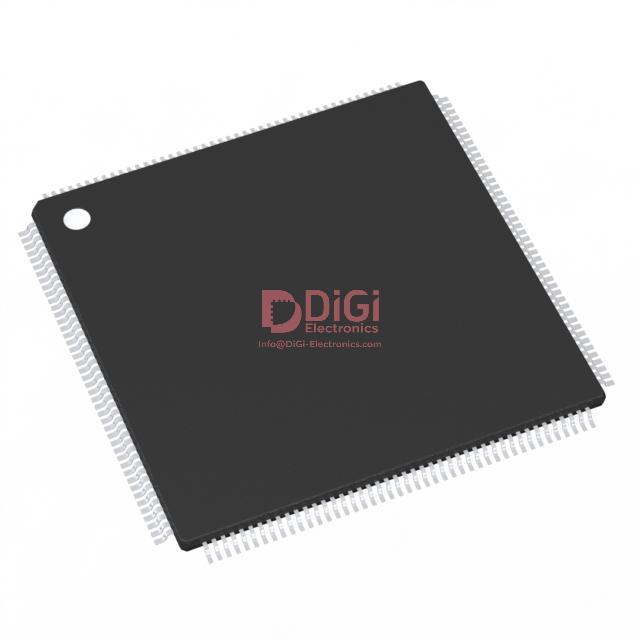

This Renesas R5F2L3AACNFP#V0 is a 16-bit microcontroller based on the R8C core, operating at a speed of 20MHz. It offers 96KB of FLASH program memory and 10K x 8 of RAM, along with 4K x 8 of EEPROM.
The microcontroller supports a wide operating voltage range from 1.8V to 5.5V and includes peripherals such as LCD, POR, PWM, Voltage Detect, and WDT. Connectivity options include I²C, LINbus, SIO, SSU, and UART/USART. It also features data converters with A/D 20x10b and D/A 2x8b capabilities.
The device is designed for surface mount applications and comes in a 100-LFQFP (14x14) package. The operating temperature range is -20°C to 85°C (TA). This component is suitable for various embedded systems requiring a compact and capable microcontroller.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status, though these are currently unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core processor is R8C.
The speed is 20MHz.
It has 96KB (96K x 8) of FLASH program memory.
The operating voltage range is 1.8V to 5.5V.
It is supplied in a 100-LFQFP (14x14) package.
The operating temperature range is -20°C to 85°C (TA).
