| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Failure Rate | |
| Lead Style | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| RAM Size | |
| SVHC Present | |
| Speed |

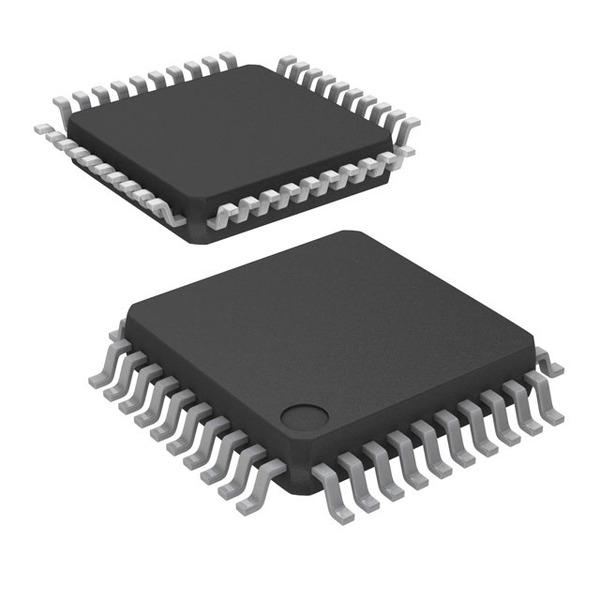

The Renesas R5F21264SNFP#U0 is a 16-bit microcontroller designed for embedded control applications. It features 24KB of Flash program memory and 1.5KB of RAM, operating at a maximum frequency of 20MHz.
This microcontroller supports a supply voltage range of 2.2V to 5.5V and includes 25 I/O pins. It is equipped with a 12-channel, 10-bit Analog-to-Digital (A/D) converter and various peripherals such as LED, Power-On Reset (POR), Voltage Detect, and Watchdog Timer (WDT). Connectivity options include I²C, LINbus, SIO, SSU, and UART/USART.
The device operates within a temperature range of -20°C to 85°C. It is housed in a 32-LQFP (7x7mm) surface-mount package and is supplied on tape and reel.
Key specifications include its R8C core processor, internal oscillator, and a base product number of R5F21265.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.52 | $5.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.2V to 5.5V.
-20°C to 85°C.
32-LQFP (7x7) package.
24KB Flash.
1.5KB.
R8C 16-bit core.
I²C, LINbus, SIO, SSU, UART/USART.
