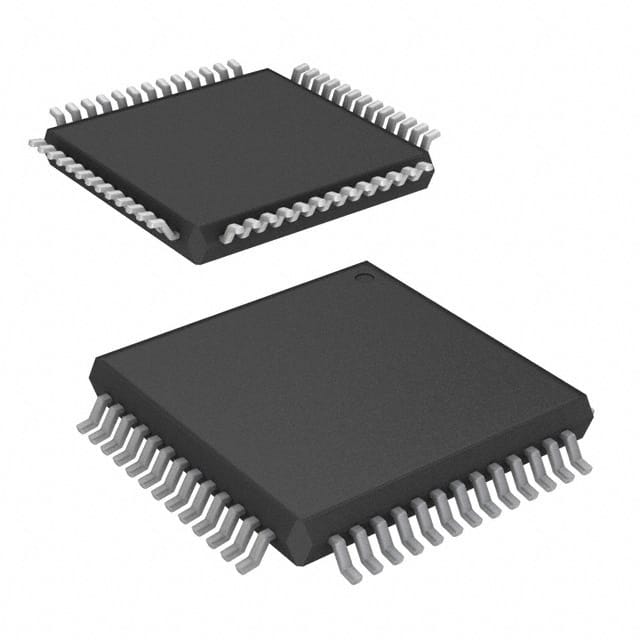

R5F21248SDFP#V2 The Renesas R5F21248SDFP#V2 is a 16-bit microcontroller with 64KB of FLASH program memory and 3KB of RAM. It operates at speeds up to 20MHz.
Mfr Part #:

R5F21248SDFP#V2

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas R5F21248SDFP#V2 is a 16-bit microcontroller with 64KB of FLASH program memory and 3KB of RAM. It operates at speeds up to 20MHz.
✓ Total Stock: 27,815 pcs
$ Price Range: $6.40

R5F21248SDFP#V2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
27,815 pcs
On Request
27815 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R5F21248SDFP#V2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

R5F21248SDFP#V2 Description

Short technical summary and product information.

This Renesas microcontroller, part number R5F21248SDFP#V2, is a 16-bit device designed for embedded applications. It features 64KB of FLASH program memory and 3KB of RAM, supporting efficient data handling and program execution.



The device operates within a voltage range of 2.2V to 5.5V and can function in temperatures from -40°C to 85°C. It includes peripherals such as POR, Voltage Detect, and WDT, along with data conversion capabilities (A/D 12x10b).



Connectivity options include I²C, LINbus, SIO, SSU, and UART/USART, making it versatile for various communication needs. The microcontroller has 41 I/O lines and an internal oscillator.



Packaged in a 52-LQFP (10x10) format, it is designed for surface mount applications. The R5F21248SDFP#V2 is RoHS3 compliant and has an MSL rating of 1.

R5F21248SDFP#V2 Quick Information

Product Type: Microcontroller
Canonical Name: Renesas R5F21248SDFP#V2 16-Bit Microcontroller
Subcategory: Embedded

R5F21248SDFP#V2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R5F21248SDFP#V2 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

R5F21248SDFP#V2 Features

  • 16-bit R8C core microcontroller.
  • 64KB Flash program memory.
  • 3KB RAM data memory.
  • Operates at 20MHz speed.
  • 52-LQFP surface mount package.

R5F21248SDFP#V2 Applications

  • Suitable for embedded control tasks.
  • Supports I²C and UART communication.
  • Ideal for applications needing WDT.
  • Features 12-bit A/D converters.

R5F21248SDFP#V2 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the R5F21248SDFP#V2?

The operating voltage range is 2.2V to 5.5V.

What is the package type for the R5F21248SDFP#V2?

The package type is 52-LQFP.

What is the operating temperature range of the R5F21248SDFP#V2?

The operating temperature range is -40°C to 85°C (TA).

What is the program memory size of the R5F21248SDFP#V2?

The program memory size is 64KB (64K x 8).
