| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,600 pcs
|
22600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

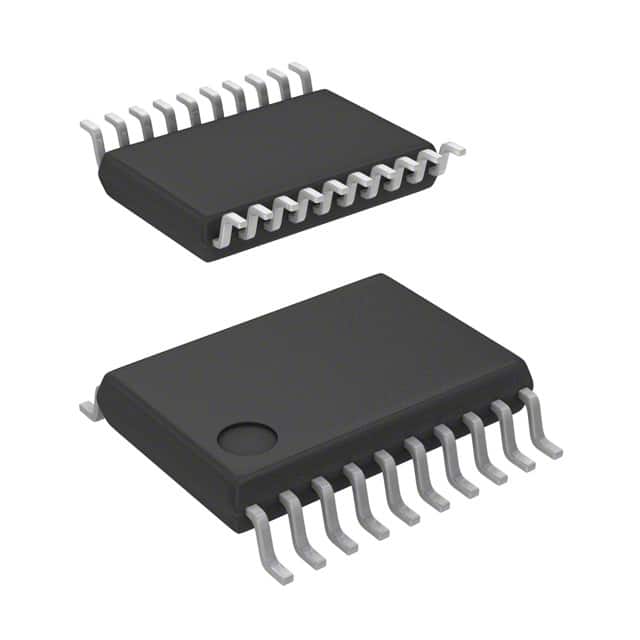

This Renesas microcontroller, part number R5F211B4SP#W4, is a 16-bit embedded processing unit based on the R8C core. It offers 16KB of FLASH program memory and 1KB of RAM, suitable for various embedded applications.
The device operates within a voltage range of 2.7V to 5.5V and runs at a maximum speed of 20MHz. It includes essential peripherals such as LED, POR, Voltage Detect, and WDT, along with data conversion capabilities (A/D 4x10b) and standard connectivity options like I²C, SIO, SSU, and UART/USART.
Packaged in a 20-LSSOP (0.173", 4.40mm Width) format, this component is designed for surface mounting. Its operating temperature range is -20°C to 85°C (TA). The microcontroller also features an internal oscillator type.
Key specifications include 13 I/O lines, making it a versatile choice for control and data processing tasks in embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 16KB (16K x 8).
The operating voltage range is 2.7V to 5.5V.
The operating temperature range is -20°C to 85°C (TA).
It is supplied in a 20-LSSOP package.
