| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,560 pcs
|
2560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

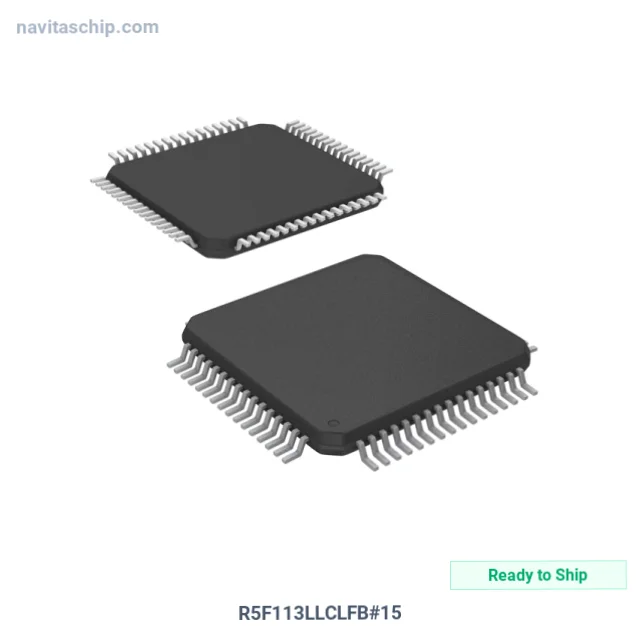

The Renesas R5F113LLCLFB#15 is a 16-bit microcontroller based on the RL78 core, designed for embedded applications. It features 512KB of Flash program memory and 32KB of RAM, with an additional 16KB of EEPROM.
This MCU operates at a speed of 32MHz and supports a wide range of connectivity options including CANbus, CSI, I2C, LINbus, SPI, and UART/USART. It includes peripherals such as LVD, POR, PWM, a temperature sensor, and a WDT, along with 52 I/O pins.
The device operates within a supply voltage range of 2.7V to 5.5V and has an operating temperature range of -40°C to 105°C (TA). It is supplied in a 64-LFQFP (10x10) package, suitable for surface mounting.
Key specifications include 22x10b SAR A/D converters and a 1x8b D/A converter. The internal oscillator type simplifies design. This microcontroller is qualified for automotive applications (AEC-Q100).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates within a voltage range of 2.7V to 5.5V.
It is packaged in a 64-LFQFP (10x10) surface mount package.
It operates from -40°C to 105°C.
Yes, it is RoHS3 compliant.
