R5F10PGJKNA#U5 The Renesas R5F10PGJKNA#U5 is a 16-bit microcontroller featuring 256KB of FLASH program memory and 20KB of RAM. It operates at speeds up to 24MHz.
Mfr Part #:

R5F10PGJKNA#U5

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas R5F10PGJKNA#U5 is a 16-bit microcontroller featuring 256KB of FLASH program memory and 20KB of RAM. It operates at speeds up to 24MHz.
✓ Total Stock: 4,709 pcs
$ Price Range: $6.40

R5F10PGJKNA#U5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
4,709 pcs
On Request
4709 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R5F10PGJKNA#U5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

R5F10PGJKNA#U5 Description

Short technical summary and product information.

This Renesas microcontroller, part number R5F10PGJKNA#U5, is built on a 16-bit RL78 core and operates at speeds up to 24MHz. It offers 256KB of FLASH program memory and 8KB of EEPROM, complemented by 20KB of RAM.



Key peripherals include LVD, POR, PWM, and WDT, with connectivity options such as CANbus, CSI, I²C, LINbus, SPI, and UART/USART. The device supports analog functions with A/D converters (17x10b SAR) and D/A converters (1x8b).

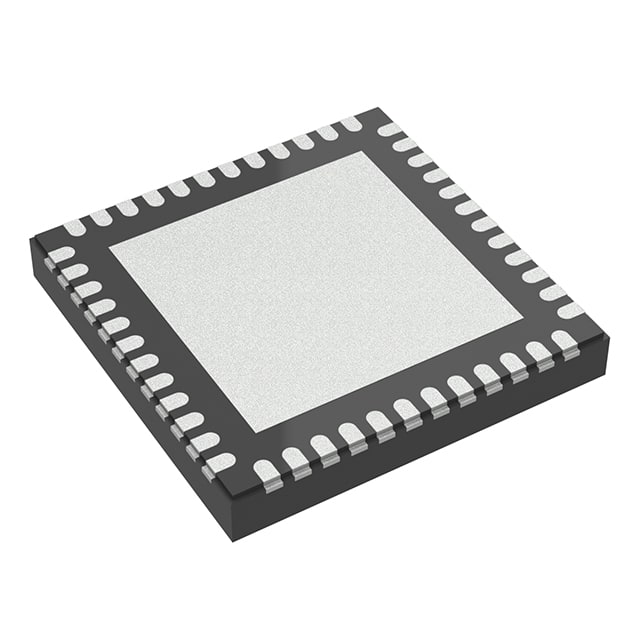

Designed for surface mounting, it comes in a 48-HVQFN (7x7) package with wettable flank termination. The operating temperature range is -40°C to 125°C (TA), and it operates within a voltage range of 2.7V to 5.5V. The part has 38 I/O lines and an internal oscillator.



This component is suitable for various embedded applications requiring a robust microcontroller with ample memory and peripheral support.

R5F10PGJKNA#U5 Quick Information

Product Type: Microcontroller
Canonical Name: Renesas R5F10PGJKNA#U5 16-Bit Microcontroller
Subcategory: Microcontrollers

R5F10PGJKNA#U5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R5F10PGJKNA#U5 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

R5F10PGJKNA#U5 Features

  • 16-bit RL78 core microcontroller.
  • 256KB FLASH program memory.
  • 20KB RAM and 8KB EEPROM.
  • Operates at 24MHz with internal oscillator.
  • Surface mount 48-HVQFN package.

R5F10PGJKNA#U5 Applications

  • Suitable for embedded control systems.
  • Features CANbus and I²C connectivity.
  • Wide operating temperature range.
  • Supports multiple communication protocols.

R5F10PGJKNA#U5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the program memory size of the R5F10PGJKNA#U5?

The program memory size is 256KB (256K x 8).

What is the RAM size for the R5F10PGJKNA#U5?

The RAM size is 20K x 8.

What is the operating voltage range for this microcontroller?

The operating voltage is between 2.7V and 5.5V.

What is the operating temperature range?

The operating temperature is from -40°C to 125°C (TA).

What type of package is the R5F10PGJKNA#U5 supplied in?

It is supplied in a 48-HVQFN (7x7) package.

What are the connectivity options available on this device?

Connectivity options include CANbus, CSI, I²C, LINbus, SPI, and UART/USART.
