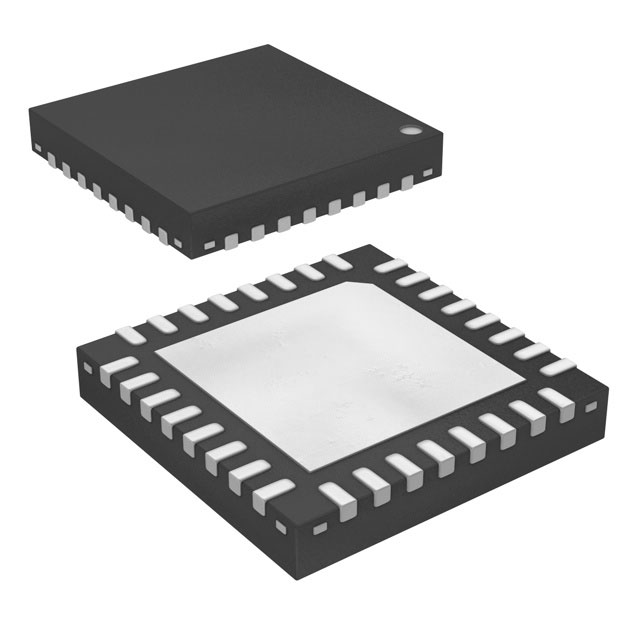

R5F100BCANA#00 The Renesas R5F100BCANA#00 is a 16-bit microcontroller featuring 32KB of FLASH program memory and operating at speeds up to 32MHz. It is housed in a 32-HWQFN package.
Mfr Part #:

R5F100BCANA#00

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas R5F100BCANA#00 is a 16-bit microcontroller featuring 32KB of FLASH program memory and operating at speeds up to 32MHz. It is housed in a 32-HWQFN package.
✓ Total Stock: 290,080 pcs
$ Price Range: $6.40

R5F100BCANA#00 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
290,080 pcs
On Request
290080 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R5F100BCANA#00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Failure Rate
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

R5F100BCANA#00 Description

Short technical summary and product information.

The Renesas R5F100BCANA#00 is a 16-bit microcontroller from the RL78/G13 series. It offers 32KB of FLASH program memory and 2KB of RAM, with an additional 4KB of EEPROM.



This device operates at a speed of 32MHz and supports various connectivity options including CSI, I2C, LINbus, and UART/USART. It is equipped with peripherals such as DMA, LVD, POR, PWM, and WDT. The microcontroller has 22 I/O lines and an 8-channel 8/10-bit A/D converter.



Designed for surface mounting, the R5F100BCANA#00 comes in a 32-HWQFN (5x5) package. It operates within a voltage range of 1.6V to 5.5V and has an operating temperature range of -40°C to 85°C (TA).

R5F100BCANA#00 Quick Information

Product Type: Microcontroller
Series: RL78/G13
Canonical Name: R5F100BCANA#00 16-Bit RL78 Microcontroller
Subcategory: 16-Bit Microcontroller

R5F100BCANA#00 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R5F100BCANA#00 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

R5F100BCANA#00 Features

  • 16-bit RL78 core processor.
  • 32KB FLASH program memory.
  • Operates at 32MHz speed.
  • Supports CSI, I2C, LINbus, UART/USART.
  • Surface mount 32-HWQFN package.

R5F100BCANA#00 Applications

  • Suitable for embedded control applications.
  • Ideal for systems requiring low voltage operation.
  • Used in applications with mixed signal needs.
  • Designed for compact surface mount designs.

R5F100BCANA#00 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the program memory size of the R5F100BCANA#00?

The R5F100BCANA#00 has 32KB (32K x 8) of program memory.

What is the operating voltage range for this microcontroller?

The operating voltage range is 1.6V to 5.5V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).

What package type is the R5F100BCANA#00 supplied in?

It is supplied in a 32-HWQFN (5x5) package.

What is the core processor of the R5F100BCANA#00?

The core processor is RL78.

What are the connectivity options available on this device?

Connectivity options include CSI, I2C, LINbus, and UART/USART.
