| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Termination Style | |
| Voltage Rating | |
| Weight |

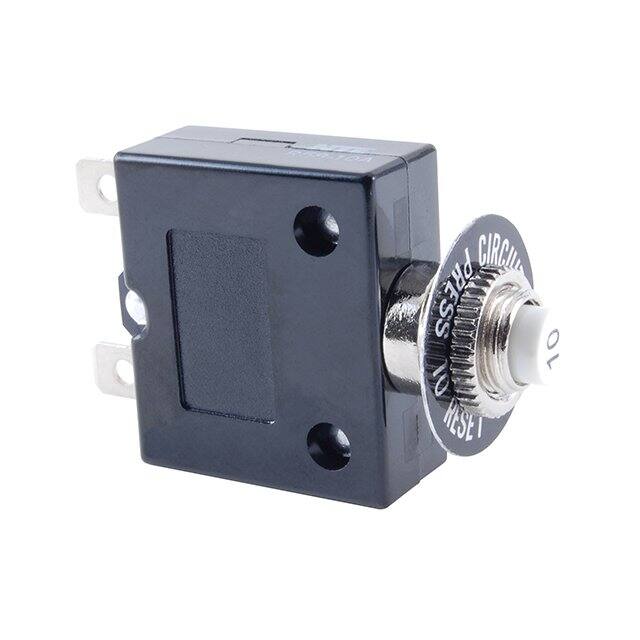

The NTE Electronics R58-6A is a thermal circuit breaker designed for reliable overcurrent protection. It is rated for a continuous current of 6A and can handle a maximum operating voltage of 250 VAC or 50 VDC.
This circuit breaker features a thermal tripping mechanism that will continuously carry 100% of its rating and trip between 101% and 144% of rating, ensuring precise protection. It has an interrupt capacity of 1000A at 250 VAC and 2000A at 50 VDC.
Mechanically, the R58-6A is designed for panel mounting and utilizes .250 (6.35) quick connect terminals for easy installation. It has undergone endurance cycling testing, exceeding 1000 cycles at 200% of its rated load, and withstands shock and vibration up to 10g.
Compliance is noted with CSA and UR agency approvals. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
The NTE R58-6A circuit breaker has a current rating of 6A.
The NTE R58-6A circuit breaker has a maximum operating voltage of 250 VAC and 50 VDC.
The NTE R58-6A circuit breaker will continuously carry 100% of its rating and trip between 101% and 144%, but must trip at 145% of rating at +25°C.
The interrupt capacity is 1000 Amps at 250 VAC and 2000 Amps at 50 VDC.
The NTE R58-6A circuit breaker uses .250 (6.35) Quick Connect Terminals.
Yes, the RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
