| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Termination Style | |
| Voltage Rating | |
| Weight |

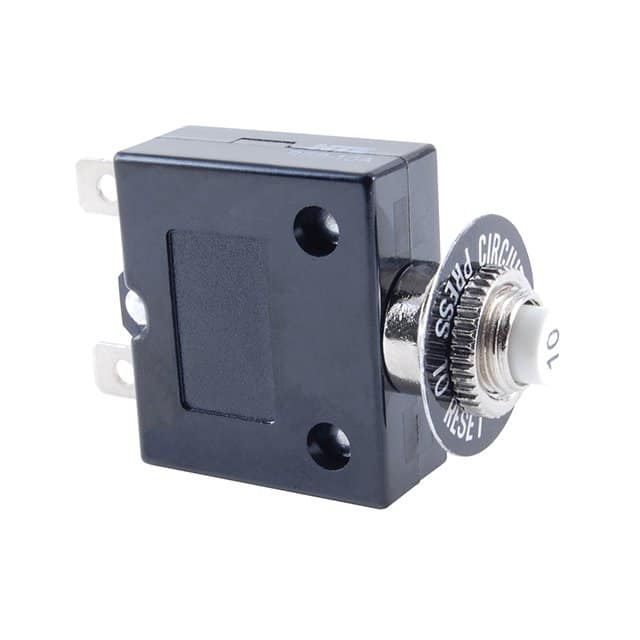

The NTE Electronics R58-3A is a thermal circuit breaker with a 3A current rating and a 250VAC/50VDC voltage rating. It is designed for panel mounting and features a pushbutton actuator for easy operation. This single-pole breaker offers a dielectric strength of 1500VAC RMS and an interrupt capacity of 2000 Amps at 50 VDC and 1000 Amps at 250 VAC.
Key electrical characteristics include continuous carrying of 100% of rating, with tripping occurring between 101% and 145% of rating at 25°C. The resettable overload capacity is ten times the rated current, and it has undergone endurance cycling of over 1000 cycles at 200% of rated load. Mechanical characteristics include resistance to 10g shock and vibration.
This circuit breaker is suitable for applications requiring reliable overcurrent protection. Its thermal tripping mechanism provides a safe and effective way to protect electrical circuits from damage due to overloads or short circuits. The quick connect terminals facilitate easy installation.
250VAC and 50VDC.
3A.
Thermal.
Pushbutton.
Panel mount.
2000A at 50VDC and 1000A at 250VAC.
CSA and UR.
