| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Termination Style | |
| Voltage Rating | |
| Weight |

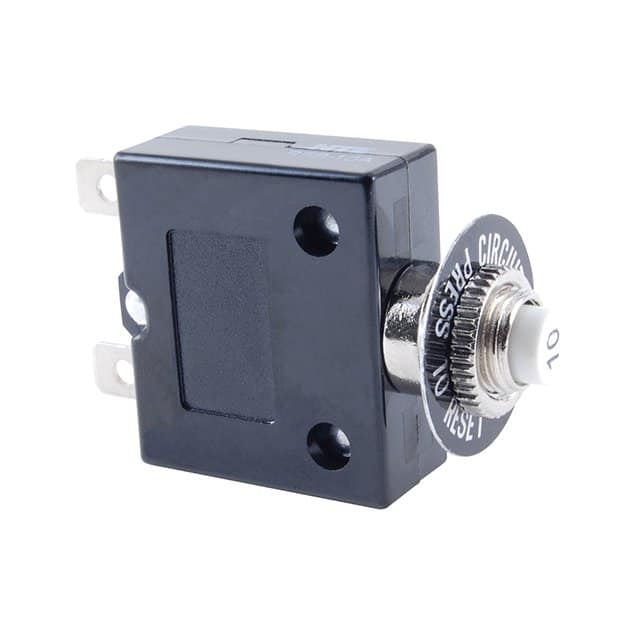

This NTE Electronics R58-30A is a thermal circuit breaker designed for reliable overcurrent protection. It is rated for a continuous current of 30A and can operate at voltages up to 250 VAC or 50 VDC.
The breaker features a panel mount design for easy integration into control panels and equipment. It utilizes .250 (6.35) quick connect terminals for secure and convenient connections. Soldering to the terminals is not recommended.
Electrical specifications include a dielectric strength of 1500 VAC RMS. The interrupt capacity is 2000 Amps at 50 VDC and 1000 Amps at 250 VAC. The breaker is designed to continuously carry 100% of its rating and will trip between 101% and 144% of rating, tripping at 145% at +25 ° C. It offers a resettable overload capacity of ten times the rated current.
Mechanically, the R58-30A withstands 10 g of shock and vibration. It has undergone endurance cycling of over 1000 cycles at 200% of its rated load. The weight is less than 1.5 ozs (42.5 g). This circuit breaker is suitable for various industrial and commercial applications requiring robust overcurrent protection.
The NTE R58-30A circuit breaker has a current rating of 30A.
The maximum operating voltage for the NTE R58-30A is 250 VAC and 50 VDC.
The NTE R58-30A circuit breaker is designed for panel mounting.
The NTE R58-30A uses .250 (6.35) quick connect terminals.
The interrupt capacity of the R58-30A at 250 VAC is 1000 Amps.
The dielectric strength of the NTE R58-30A is 1500 VAC RMS.
