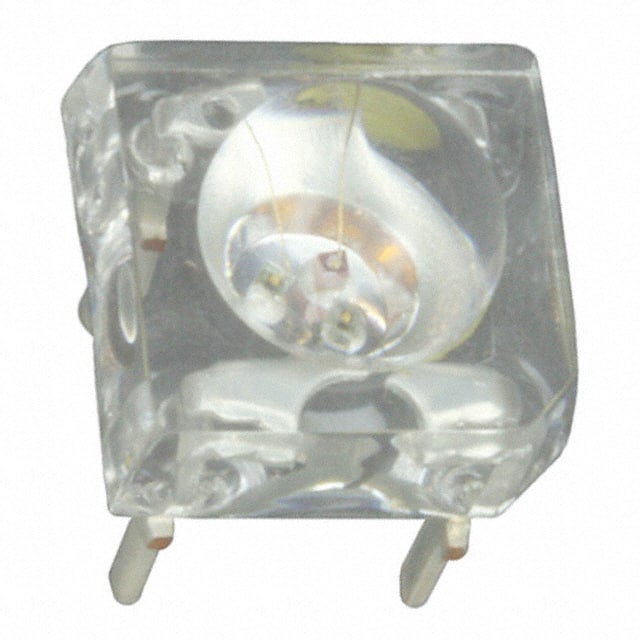

R50RGB-5-0080 The Bivar Inc. R50RGB-5-0080 is a Through Hole RGB LED. It offers Red, Green, and Blue light emission with distinct voltage and current specifications for each color.
Mfr Part #:

R50RGB-5-0080

Available from 1 distributors
Mfr Name: Bivar Inc.
Bivar Inc.
The Bivar Inc. R50RGB-5-0080 is a Through Hole RGB LED. It offers Red, Green, and Blue light emission with distinct voltage and current specifications for each color.
✓ Total Stock: 120 pcs
$ Price Range: $0.06

R50RGB-5-0080 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R50RGB-5-0080 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height
Height (Max)
Lead Spacing
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

R50RGB-5-0080 Description

Short technical summary and product information.

This Bivar Inc. R50RGB-5-0080 is a discrete RGB LED designed for through-hole mounting. It features a common cathode configuration and emits Red, Green, and Blue light, each with specific electrical characteristics. The Red LED operates at a typical forward voltage of 2.6V and current of 50mA, producing a luminous intensity of 1000mcd. The Green LED requires a typical 3.8V and 50mA, yielding 2000mcd. The Blue LED also operates at 3.8V and 50mA, with a luminous intensity of 200mcd. The LED has a round, domed top lens with a colorless appearance and a diameter of 5.00mm. The overall package size is 7.60mm by 7.60mm, with a maximum height of 6.90mm. The viewing angle is 80 degrees. The part is packaged in a 4-DIP format with a lead spacing of 0.200 inches (5.08mm).

R50RGB-5-0080 Quick Information

Product Type: RGB LED
Canonical Name: Bivar Inc. R50RGB-5-0080 RGB LED
Subcategory: Discrete

R50RGB-5-0080 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R50RGB-5-0080 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

R50RGB-5-0080 Features

  • Through hole mounting RGB LED.
  • Red, Green, and Blue light emission.
  • Typical forward voltage 2.6V to 3.8V.
  • 50mA forward current per color.
  • 80 degree viewing angle.

R50RGB-5-0080 Applications

  • Indicator lights for status.
  • Color mixing applications.
  • General purpose lighting.
  • Panel illumination.

R50RGB-5-0080 FAQs

6 frequently asked questions generated from this part’s specifications.
What colors does the Bivar R50RGB-5-0080 LED emit?

The LED emits Red, Green, and Blue light.

What is the forward voltage for the Red, Green, and Blue emitters?

The typical forward voltage is 2.6V for Red, and 3.8V for Green and Blue.

What is the typical forward current for each color of the R50RGB-5-0080 LED?

The typical forward current is 50mA for Red, Green, and Blue.

What is the luminous intensity for each color of this RGB LED?

The luminous intensity is 1000mcd for Red, 2000mcd for Green, and 200mcd for Blue.

How is the Bivar R50RGB-5-0080 LED mounted?

This LED is designed for Through Hole mounting.

What is the package type for the R50RGB-5-0080?

The package type is 4-DIP (0.200", 5.08mm).
