| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Failure Rate | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Diameter | |
| Lead Length | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum dV/dt | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Quantity | |
| Packaging Type | |
| Rated Temperature | |
| Ratings | |
| Safety Approvals | |
| THB Performance | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Weight | |
| Width |

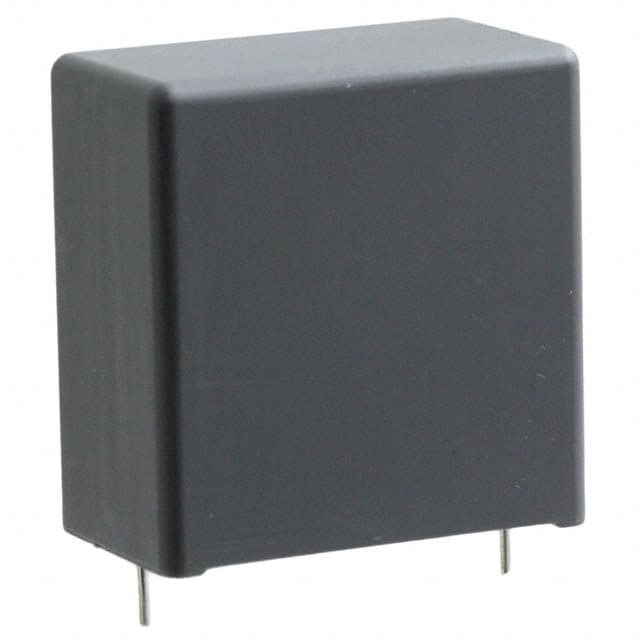

The R46KR433050M2M is a metallized polypropylene film capacitor from KEMET's R46 275 VAC series. It is designed for EMI and RFI suppression applications, rated as X2 safety class. The capacitor offers a capacitance of 3.3 µF with a tolerance of ±20% and can withstand voltages up to 275 VAC and 560 VDC.
Electrical characteristics include a dissipation factor of 0.1% at 1 kHz, insulation resistance of 9.0909 GΩ, and maximum dV/dt of 150 V/µs. The operating temperature range is -40°C to 110°C with a rated temperature of 110°C.
The component comes in a radial through-hole package with PC pin terminations. Dimensions are 32 mm length, 33 mm height, and 18 mm width, with a lead spacing of 27.5 mm. It is supplied in trays with a packaging quantity of 128 pieces. The capacitor is RoHS compliant and has safety approvals including ENEC, UL, cUL, and CQC.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.39 | $3.39 |
| 10+ | $2.52 | $2.52 |
| 50+ | $2.18 | $2.18 |
| 100+ | $1.77 | $1.77 |
| 512+ | $1.64 | $1.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 µF.
275 VAC (X2) and 560 VDC.
Metallized Polypropylene.
±20%.
Through-hole radial with 27.5 mm lead spacing.
-40°C to 110°C.
ENEC, UL, cUL, CQC.
