| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Maximum dV/dt | |
| Mounting Type | |
| Operating Temperature | |
| Package Kind | |
| Package Quantity | |
| Package Type | |
| Rated Temperature | |
| Ratings | |
| Safety Certification (@ CQC GB/T 14472) | |
| Safety Certification (@ CSA 384-14) | |
| Safety Certification (IEC 60384-14) | |
| Safety Certification (UL 1283) | |
| Safety Certification (UL 1414) | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Width |

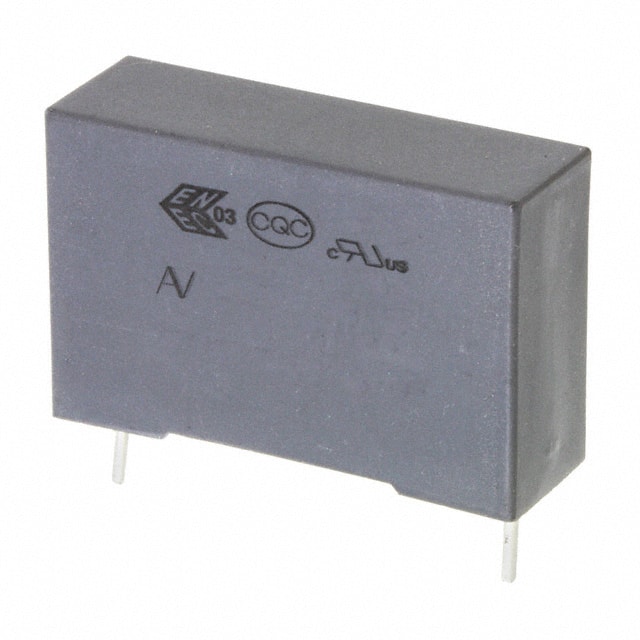

The KEMET R46KN410000P1M is a metallized polypropylene film capacitor designed for use as an X2 safety capacitor in EMI and RFI suppression applications across AC power lines. With a capacitance of 1 µF and a tolerance of ±20%, this capacitor is rated for 560V DC and 275V AC, meeting the requirements of international safety standards including IEC 60384-14, UL 1283, and CSA 384-14.
Key electrical characteristics include a dissipation factor of only 0.1% at 1 kHz, an insulation resistance of 30 GΩ, and a maximum dV/dt of 200 V/µs, ensuring reliable performance in transient-rich environments. The capacitor operates over a temperature range of -40°C to +110°C with a rated temperature of 105°C, making it suitable for a wide variety of industrial and consumer applications.
The component is housed in a radial box package with PC pin terminations and a lead spacing of 22.5 mm. The compact dimensions (26.5 mm length, 8.5 mm width, 17.1 mm height) allow for efficient board mounting. The part is supplied in bulk packaging in bags of 468 pieces per bag.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
| 10+ | $0.69 | $0.69 |
| 100+ | $0.54 | $0.54 |
| 468+ | $0.51 | $0.51 |
| 936+ | $0.49 | $0.49 |
| 2,808+ | $0.47 | $0.47 |
| 5,148+ | $0.45 | $0.45 |
| 25,272+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 µF.
560V DC and 275V AC.
Metallized polypropylene.
±20%.
Radial through-hole with PC pin terminations and 22.5 mm lead spacing.
-40°C to +110°C.
IEC 60384-14, UL 1283, UL 1414, CSA 384-14, and CQC GB/T 14472.
