| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
385 pcs
|
385 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application (Safety) | |
| Applications | |
| Body Type | |
| Brand | |
| CQC GB/T 14472 Rating | |
| CSA 384-14 Rating | |
| Capacitance | |
| Construction | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| IEC 60384-14 Rating | |
| Insulation Resistance | |
| Lead Diameter | |
| Lead Length | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package Kind | |
| Package Quantity | |
| Package Type | |
| Rated Temperature | |
| Ratings | |
| Tape & Reel | |
| Termination | |
| Tolerance | |
| UL 1283 Rating | |
| UL 1414 Rating | |
| Voltage Rating | |
| Voltage Rating AC | |
| Width | |
| dV/dt (Maximum) |

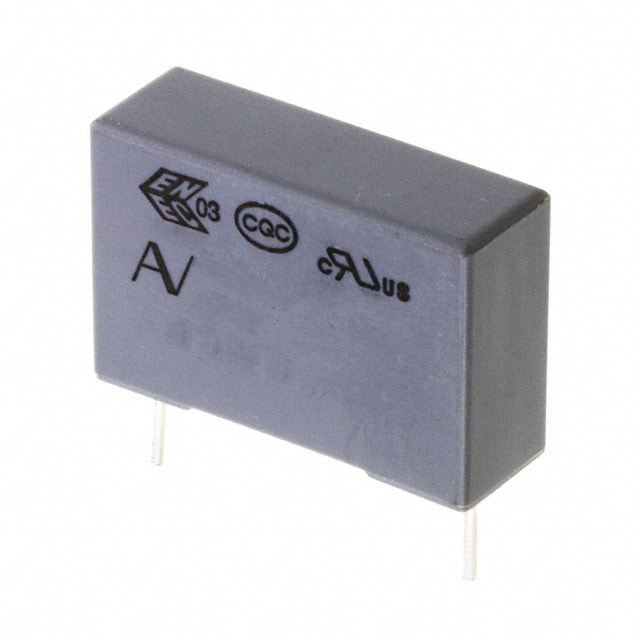

The KEMET R46KI322000P0M is a 0.22 µF metallized polypropylene film capacitor with ±20% tolerance and a 560VDC/275VAC voltage rating. It is designed for EMI/RFI suppression applications and is safety rated as X2 per IEC 60384-14, UL 1414, UL 1283, CSA 384-14, and CQC GB/T 14472. The capacitor features a radial through-hole package with dimensions 18mm x 12.1mm x 6mm and 15mm lead spacing. It operates over a temperature range of -40°C to 110°C with a rated temperature of 105°C. Electrical characteristics include a dissipation factor of 0.1% at 1 kHz, insulation resistance of 100 GΩ, and a maximum dv/dt of 400 V/µs. The component is supplied in bulk packaging with 1750 pieces per bag. RoHS, REACH, and MSL 1 compliance are noted but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.39 | $0.39 |
| 100+ | $0.35 | $0.35 |
| 500+ | $0.27 | $0.27 |
| 1,000+ | $0.25 | $0.25 |
| 1,750+ | $0.25 | $0.25 |
| 5,250+ | $0.24 | $0.24 |
| 26,250+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.22 µF.
560VDC and 275VAC.
Polypropylene (PP), metallized.
±20%.
Radial through-hole package, 18mm x 12.1mm x 6mm, with 15mm lead spacing.
-40°C to 110°C.
X2 rated per IEC 60384-14, UL 1414 (250V), UL 1283 (310V), CSA 384-14 (275V), and CQC GB/T 14472 (275V).
