| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Diameter | |
| Lead Length | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Max dV/dt | |
| Mounting Type | |
| Operating Temperature | |
| Rated Temperature | |
| Ratings | |
| Standard Package Qty | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage (AC) | |
| Voltage Rating | |
| Weight | |
| Width |

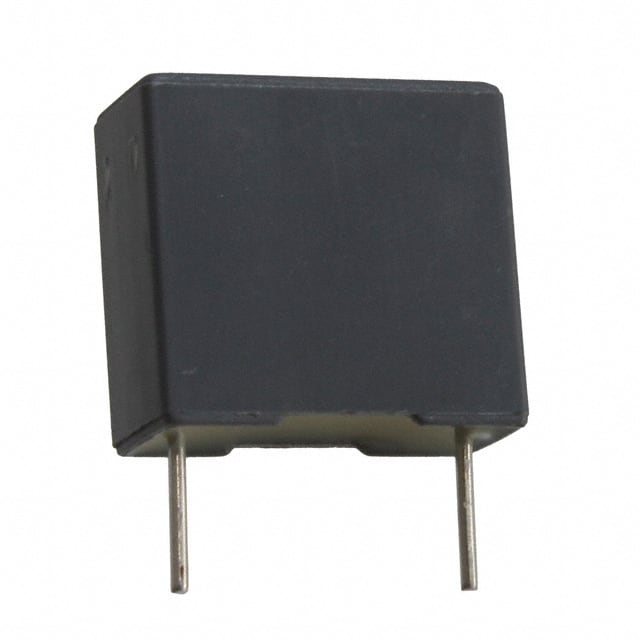

The R46KF268050M1K is a KEMET R46 series metallized polypropylene film capacitor designed for X2 safety class applications, primarily EMI and RFI suppression in AC line filtering. It offers a capacitance of 0.068 µF with a tolerance of ±10%. The capacitor is rated for 560 VDC and 275 VAC, making it suitable for across-the-line use in power supplies and motor drives.
Electrically, this component features a low dissipation factor of 0.1% at 1 kHz, a high insulation resistance of 100 GOhms, and a maximum dV/dt of 500 V/µs. It operates reliably over a temperature range of -40°C to 110°C, with a rated temperature of 110°C.
Mechanically, the capacitor comes in a radial through-hole package with tinned wire leads. Dimensions are 13.0 mm length, 12.1 mm height, and 6.0 mm width, with a lead spacing of 10.0 mm, lead length of 25 mm, and lead diameter of 0.6 mm. The component weighs approximately 1.331 g.
Packaging is bulk bag with a standard quantity of 1200 pieces. The capacitor is RoHS compliant and carries safety certifications including ENEC, UL, cUL, and CQC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.32 | $0.32 |
| 100+ | $0.29 | $0.29 |
| 500+ | $0.24 | $0.24 |
| 2,400+ | $0.20 | $0.20 |
| 6,000+ | $0.19 | $0.19 |
| 25,200+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.068 µF.
560 VDC and 275 VAC (X2).
Metallized polypropylene (PP).
±10%.
Radial through-hole with tinned wire leads.
-40°C to 110°C.
X2 class, along with ENEC, UL, cUL, and CQC certifications.
