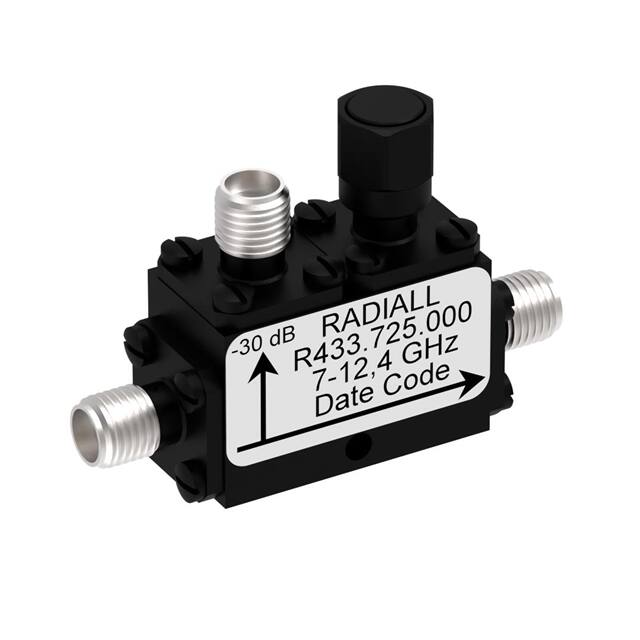

R433725000 The Radiall R433725000 is an RF Directional Coupler operating from 7-12.4GHz. It features 30dB nominal coupling and 50W average power handling.
Mfr Part #:

R433725000

Available from 1 distributors
Mfr Name: Radiall
Radiall
The Radiall R433725000 is an RF Directional Coupler operating from 7-12.4GHz. It features 30dB nominal coupling and 50W average power handling.
✓ Total Stock: 31 pcs
$ Price Range: $0.99

R433725000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
31 pcs
On Request
31 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R433725000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Coupler Type
Coupling Factor
Frequency
Impedance
Insertion Loss
Operating Temperature
Power
Storage Temperature
Tape & Reel
Weight
View Similar Products (0)

R433725000 Description

Short technical summary and product information.

This RF Directional Coupler from Radiall, part number R433725000, is designed for general-purpose applications within the 7 to 12.4 GHz frequency range. It offers a nominal coupling of 30 dB with a precision of ±0.8 dB and a maximum insertion loss of 0.4 dB.



The coupler has an impedance of 50 Ohms and features SMA female connectors per MIL-C 39012. It can handle an average power of 50W at 25°C and a peak power of 3000W at 25°C. The operating and storage temperature range is -40°C to +100°C.



Mechanical specifications include a weight of 29.57g. The coaxial termination is SMA, 50 Ohm, 1W. This module is suitable for applications requiring precise RF signal division or combination within its specified frequency band.

R433725000 Quick Information

Product Type: RF Directional Coupler
Series: Coupler
Canonical Name: Radiall R433725000 RF Directional Coupler

R433725000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R433725000 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

R433725000 Features

  • Operates from 7 to 12.4 GHz frequency range.
  • Provides 30 dB nominal coupling.
  • Handles 50W average power.
  • Features SMA female connectors.
  • Wide operating temperature range.

R433725000 Applications

  • Ideal for general-purpose RF applications.
  • Used in signal monitoring circuits.
  • Suitable for power measurement systems.
  • Applicable in radar systems.
  • Useful in communication systems.

R433725000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the R433725000 coupler?

The R433725000 coupler operates from 7 to 12.4 GHz.

What is the nominal coupling factor for this directional coupler?

The nominal coupling factor is 30 dB.

What is the maximum insertion loss of the R433725000?

The maximum insertion loss is 0.4 dB.

What is the average power rating at 25°C?

The average power rating at 25°C is 50W.

What type of connectors does the R433725000 use?

It uses SMA female connectors per MIL-C 39012.

What is the operating temperature range?

The operating temperature range is -40°C to +100°C.
