| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attenuation Value | |
| Body Material | |
| Center Contact Material | |
| Frequency Range | |
| Impedance | |
| Insulator Material | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Weight |

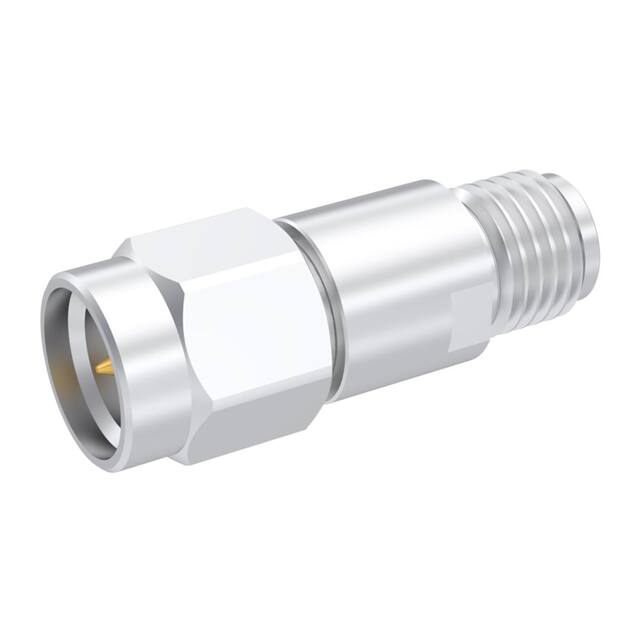

This SMA attenuator, part number R413801000 from Radiall, offers a nominal attenuation of 1 dB and operates across a wide frequency range from DC to 18 GHz. It maintains a 50 Ohm impedance, making it suitable for various RF applications.
The attenuator is rated for an average power of 2W (free air cooled) and a peak power of 100W at 25°C. It features a VSWR ranging from 1.10 up to 1.35 across its operating frequency bands and an attenuation deviation of ±0.30 dB.
Constructed with a stainless steel body and beryllium copper contacts, it utilizes PTFE insulation and a silicone rubber gasket. The operating and storage temperature range is from -55°C to +125°C. The component has a weight of 5.1470 g.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is DC to 18 GHz.
The nominal attenuation value is 1 dB.
The impedance is 50 Ohms.
The average power rating is 2W.
The operating temperature range is -55°C to +125°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
