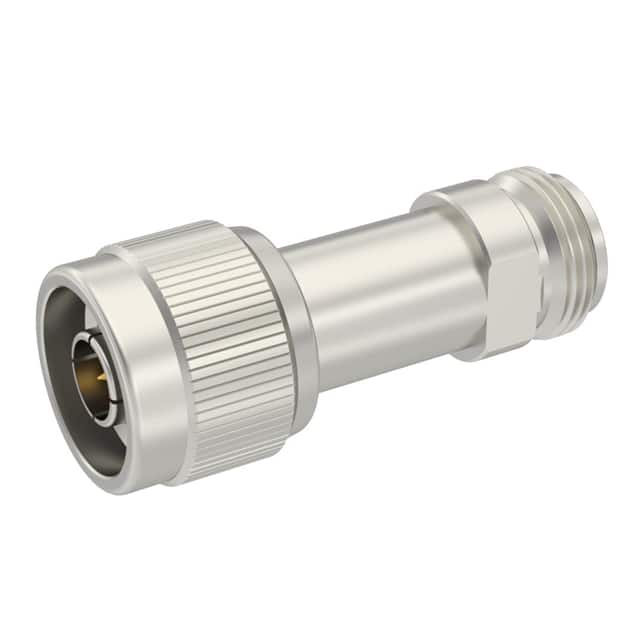

R412706000 This N-Type attenuator from Radiall offers 6dB of attenuation with a 2W average power rating. It operates over a frequency range of DC to 2 GHz with a 50 Ohm impedance.
Mfr Part #:

R412706000

Available from 1 distributors
Mfr Name: Radiall
Radiall
This N-Type attenuator from Radiall offers 6dB of attenuation with a 2W average power rating. It operates over a frequency range of DC to 2 GHz with a 50 Ohm impedance.
✓ Total Stock: 1 pcs
$ Price Range: $0.99

R412706000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R412706000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Attenuation Value
Connector Type
Frequency Range
Impedance
Operating Temperature
Power (Watts)
Storage Temperature
Tape & Reel
VSWR
Weight
View Similar Products (0)

R412706000 Description

Short technical summary and product information.

The Radiall R412706000 is an N-Type attenuator designed for RF applications. It provides a nominal attenuation of 6dB and operates across a wide frequency range from DC up to 2 GHz. The attenuator has a standard impedance of 50 Ohms and can handle an average power of 2W (free air cooled) or 100W peak power at 25°C.



Key electrical characteristics include a maximum VSWR of 1.15:1 and an attenuation deviation of ±0.35 dB. The operating and storage temperature range for this component is -55°C to +125°C. The attenuator utilizes a durable construction with components like brass, beryllium copper, and PTFE, plated with nickel and gold.



This in-line module is suitable for various RF signal conditioning tasks where precise attenuation is required. Its robust design and specified environmental tolerances make it a reliable choice for demanding applications.

R412706000 Quick Information

Product Type: Attenuator
Series: R412
Canonical Name: Radiall R412706000 N-Type Attenuator
Subcategory: RF Attenuators

R412706000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R412706000 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

R412706000 Features

  • Provides 6dB nominal attenuation.
  • Operates from DC to 2 GHz.
  • Handles 2W average power.
  • Features N-Type connector.
  • 50 Ohm impedance.

R412706000 Applications

  • Used for RF signal level reduction.
  • Suitable for impedance matching.
  • Ideal for RF test equipment.
  • Applicable in communication systems.

R412706000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the attenuation value of this device?

The attenuation value is 6 dB.

What is the frequency range of this attenuator?

The frequency range is 0 to 2 GHz.

What is the maximum power handling capacity?

The maximum power is 2 W.

What connector type does this attenuator use?

It uses an N-Type connector.

What is the impedance of this attenuator?

The impedance is 50 ohms.

What is the operating temperature range?

-55°C to +125°C.
