| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attenuation Value | |
| Frequency Range | |
| Impedance | |
| Operating Temperature Range | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Weight |

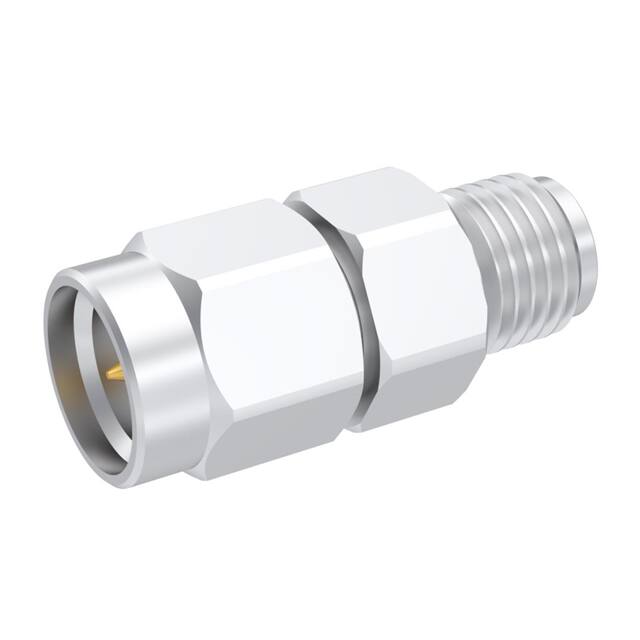

The Radiall R411806121 is an SMA attenuator with a nominal attenuation of 6dB, operating across a frequency range of DC to 18 GHz. It maintains a 50 Ohm impedance and is rated for 2W of average power in free air.
This attenuator is constructed with a stainless steel body and beryllium copper contacts plated with gold over nickel. The insulator is PTFE and the gasket is silicone rubber, ensuring reliable performance. It is housed in an SMA In-Line Module package.
Electrical characteristics include a maximum VSWR of 1.15 from DC to 4 GHz, increasing to 1.35 from 12.4 to 18 GHz. Power derating is applied at temperatures above 25°C. The operating and storage temperature range is -55°C to +125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal attenuation value is 6dB.
The operating frequency range is DC to 18 GHz.
The average power rating is 2W.
The impedance is 50 Ohms.
The operating temperature range is -55°C to +125°C.
It is an SMA In-Line Module package.
