| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Finish | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Frequency | |
| Impedance | |
| Mounting Type | |
| Power Rating | |
| Tape & Reel |

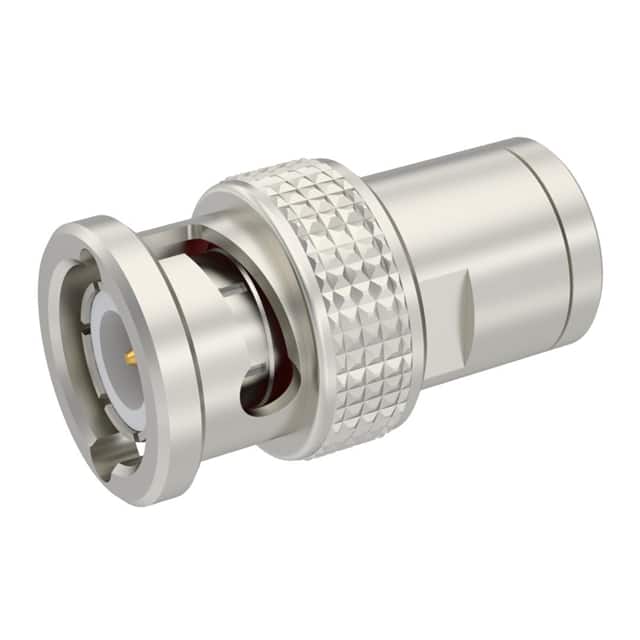

This is a BNC male plug terminator designed for RF applications. It provides a 50 Ohm impedance termination for coaxial lines up to 4 GHz.
Electrical specifications include a maximum power rating of 1W. The connector uses a free-hanging, cap mounting style.
Mechanical construction: brass contact with gold plating, nickel-plated body. It is a plug, male pin connector style.
Compliance: RoHS3 compliant, MSL Level 1, REACH unaffected (unverified). Suitable for applications requiring precise termination of RF signals.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.33 | $30.33 |
| 10+ | $25.77 | $25.77 |
| 25+ | $23.85 | $23.85 |
| 50+ | $22.79 | $22.79 |
| 100+ | $21.49 | $21.49 |
| 250+ | $20.36 | $20.36 |
| 500+ | $19.73 | $19.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm
4 GHz
1W
BNC plug, male pin
Free hanging, cap
Gold
Nickel
