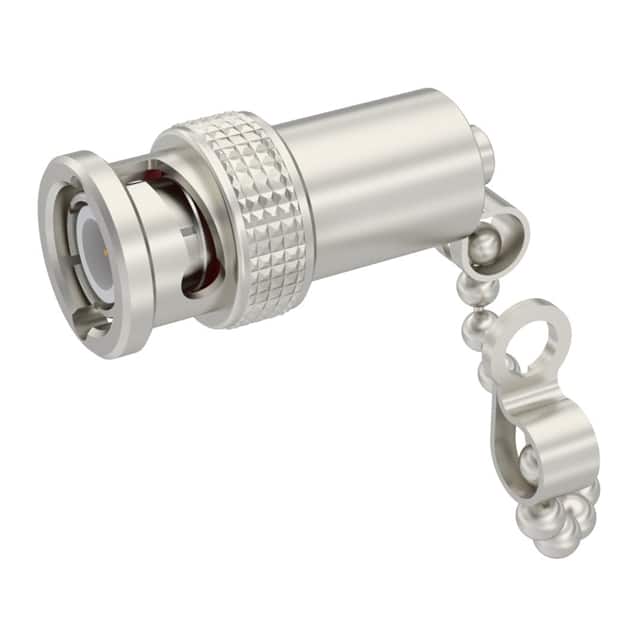

R404110120 Radiall R404110120 is a BNC male (plug) coaxial termination with 50Ω impedance, DC-8GHz frequency range, and 1W average power rating. Free hanging cap mount with nickel-plated brass body and gold-plated brass center contact.
Mfr Part #:

R404110120

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R404110120 is a BNC male (plug) coaxial termination with 50Ω impedance, DC-8GHz frequency range, and 1W average power rating. Free hanging cap mount with nickel-plated brass body and gold-plated brass center contact.
✓ Total Stock: 11 pcs
$ Price Range: $130.53

R404110120 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R404110120 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Finish
Body Material
Connector Style
Connector Type
Contact Finish
Contact Material
DC Resistance
Features
Frequency
Impedance
Insulator Material
Lead Style
Mounting Type
Operating Temperature Range
SVHC Present
Storage Temperature
Tape & Reel
Weight
View Similar Products (0)

R404110120 Description

Short technical summary and product information.

The Radiall R404110120 is a BNC male coaxial termination designed for use in RF systems requiring a precise 50Ω load. It covers the full DC to 8 GHz frequency range with a maximum VSWR of 1.25 across 4-8 GHz. The terminator is rated for 1W average power (free air cooled at 25°C) and can handle 1000W peak power under a 1µs pulse at 1% duty cycle.



The termination features a brass body with nickel finish, a brass center contact with gold plating, and a PTFE insulator. It is designed for free-hanging mounting and includes a chain feature for attachment. The operating temperature range is -55°C to +125°C.



Typical applications include RF test equipment, transmission line termination, and signal path matching in communication systems where a stable 50Ω load is required up to 8 GHz.

R404110120 Quick Information

Product Type: Coaxial Terminator
Canonical Name: Radiall R404110120 BNC Male Coaxial Termination 1W 50Ω 8GHz

R404110120 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R404110120 Estimated Pricing

Qty Low High
5+ $130.53 $130.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

R404110120 Features

  • BNC male coaxial termination 50Ω.
  • DC-8GHz frequency range with VSWR ≤1.25.
  • 1W average power, 1000W peak power.
  • Nickel-plated brass with gold-plated contact.
  • Free hanging cap mount with chain feature.

R404110120 Applications

  • Terminating 50Ω RF transmission lines.
  • RF test equipment and measurement setups.
  • Signal path matching in communication systems.
  • Antenna system load termination.

R404110120 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of this termination?

50 Ω.

What is the maximum frequency?

8 GHz.

What is the power rating?

1 W average power (free air cooled at 25°C) and 1000 W peak power (1 µs pulse, 1% duty cycle).

What is the mounting type?

Free Hanging, Cap.

What contact materials are used?

Center contact is brass with gold plating; body is brass with nickel finish.

What is the operating temperature range?

-55°C to +125°C.
