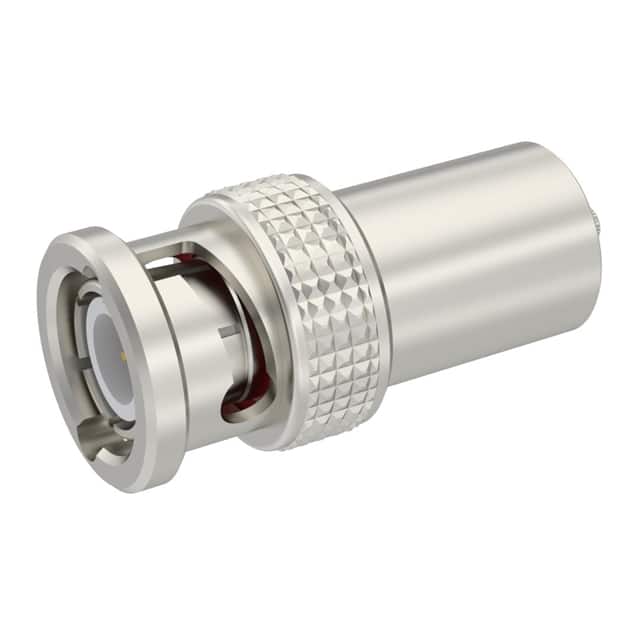

The Radiall R404110000 is a BNC male coaxial termination, also known as a coaxial cap or plug termination. It is designed to terminate a 50 Ohm transmission line, providing a matched load to prevent signal reflections. The termination is rated for frequencies from DC to 8 GHz, making it suitable for RF and microwave applications up to 8 GHz. It offers a maximum VSWR of 1.10 from DC to 2 GHz, 1.20 from 2 to 4 GHz, and 1.25 from 4 to 8 GHz, ensuring low reflection across the band. The DC resistance is 50 Ohm ±5%.
The termination is capable of handling 1W average power at 25°C in free air cooling, with a peak power handling of 1000W (1µs pulse, 1% duty cycle). It is constructed with a brass body plated with nickel, a brass center contact plated with gold over nickel, and a PTFE insulator. The gasket is silicone, the substrate is alumina, and the resistor element is thick film. The termination is designed for free hanging, cap mounting, with a weight of 14.57 grams.
This termination is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). It operates over a temperature range of -55°C to +125°C. The product is suitable for use in test equipment, RF systems, and communication devices where a precise 50 Ohm termination is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $118.05 | $118.05 |
| 10+ | $89.70 | $89.70 |
| 100+ | $86.73 | $86.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The operating frequency range is DC to 8 GHz.
VSWR is maximum 1.10 from DC to 2 GHz, 1.20 from 2 to 4 GHz, and 1.25 from 4 to 8 GHz.
Average power is 1W at 25°C (free air cooled), peak power is 1000W (1µs, 1% duty).
It is a free hanging, cap mounting type.
Body is brass with nickel finish, center contact is brass with gold plating over nickel, insulator is PTFE, gasket is silicone, substrate is alumina, resistor is thick film.
It is listed as RoHS3 compliant, but this information is unverified and should be confirmed with the manufacturer.
