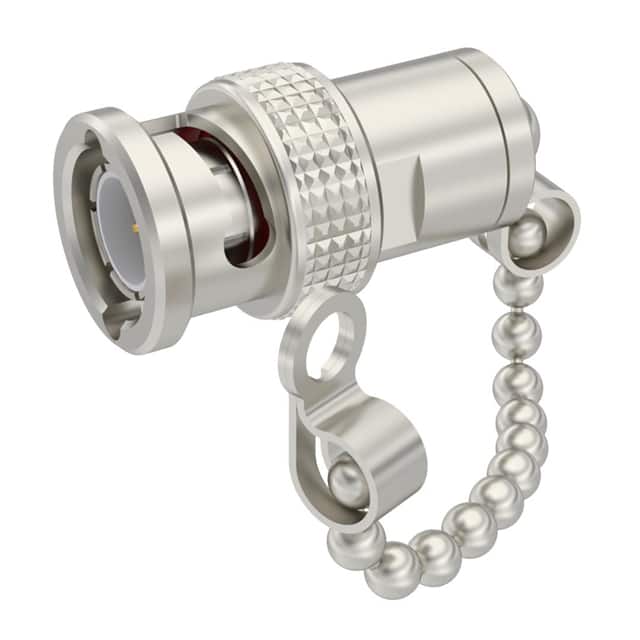

R404012120 Radiall R404012120 is a BNC male coaxial termination with 75 Ohm impedance, DC to 1 GHz frequency range, and 1 W average power rating. Features gold-plated brass contacts and nickel-plated brass body.
Mfr Part #:

R404012120

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R404012120 is a BNC male coaxial termination with 75 Ohm impedance, DC to 1 GHz frequency range, and 1 W average power rating. Features gold-plated brass contacts and nickel-plated brass body.
✓ Total Stock: 150 pcs
$ Price Range: $38.06 - $51.76

R404012120 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R404012120 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Finish
Body Material
Center Contact Material
Connector Style
Connector Type
Contact Finish
Contact Material
DC Resistance
Dielectric Material
Features
Frequency
Impedance
Mounting Type
Operating Temperature Range
Storage Temperature
Tape & Reel
Weight
View Similar Products (0)

R404012120 Description

Short technical summary and product information.

The Radiall R404012120 is a BNC male coaxial termination designed for 75 Ohm systems. It operates from DC to 1 GHz with a VSWR of ≤1.08 from DC to 0.5 GHz and ≤1.15 from 0.5 to 1 GHz. The termination has a DC resistance of 75 Ohm ± 2% and can handle an average power of 1 W in free air cooled conditions at 25°C. Peak power rating is 500 W for 1 µs pulse at 1% duty cycle.



Construction features a brass body with nickel plating, a gold-plated brass center contact, and a PTFE dielectric. The resistor is thick film on an alumina substrate. The termination is free-hanging and cap-style, weighing 15.87 g. It complies with MIL C39012 standard.



Operating temperature range is -55 to +125 °C, with storage in the same range. Power derating with temperature is provided. The part is designed for reliable RF termination in 75 Ohm systems requiring low VSWR up to 1 GHz.

R404012120 Quick Information

Product Type: Coaxial Termination
Series: H Series
Canonical Name: Radiall R404012120 BNC Male Coaxial Termination, 75 Ohm, 1 W, DC to 1 GHz
Subcategory: Coaxial Connector (RF) Terminators

R404012120 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R404012120 Estimated Pricing

Qty Low High
1+ $51.76 $51.76
10+ $45.00 $45.00
25+ $43.06 $43.06
50+ $41.67 $41.67
100+ $40.28 $40.28
250+ $38.06 $38.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

R404012120 Features

  • 75 Ohm impedance for 75 Ohm systems.
  • DC to 1 GHz frequency range.
  • VSWR ≤1.15 up to 1 GHz.
  • Gold-plated brass center contact.
  • Nickel-plated brass body.

R404012120 Applications

  • Terminating 75 Ohm coaxial lines.
  • Used in RF test and measurement setups.
  • Ideal for CATV and broadband systems.
  • Provides low reflection termination up to 1 GHz.

R404012120 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the R404012120?

75 Ω.

What is the frequency range of this termination?

DC to 1 GHz.

What is the VSWR specification?

≤1.08 from DC to 0.5 GHz, and ≤1.15 from 0.5 to 1 GHz.

What is the power handling capability?

Average power: 1 W at 25°C free air. Peak power: 500 W at 1 µs pulse, 1% duty cycle.

What connector style is used?

BNC male plug.

What is the mounting type?

Free hanging, cap style.

What materials are used in construction?

Brass body with nickel plating, gold-plated brass center contact, PTFE dielectric, silicone rubber gasket, alumina substrate, thick film resistor.
