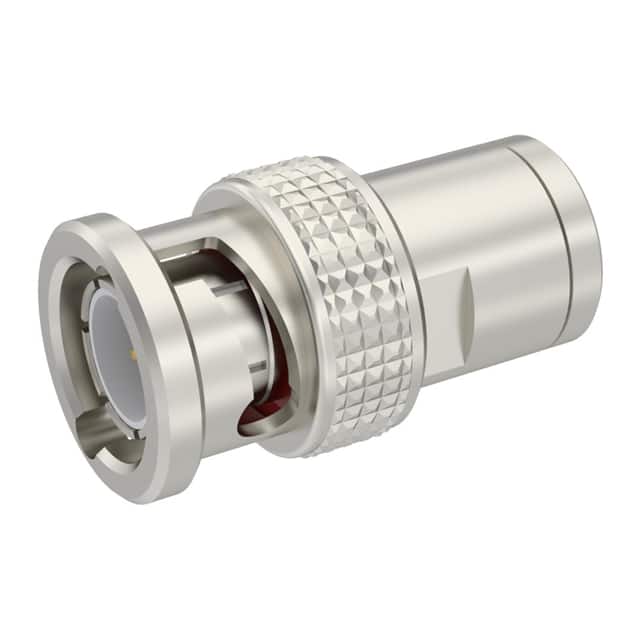

The Radiall R404012000 is a BNC male coaxial termination designed for 75 Ohm systems. It features a plug connector style with male pin contact and operates from DC to 1 GHz. The termination is rated for 1W average power in free air at 25°C and can handle up to 500W peak power (1 µs pulse, 1% duty cycle). VSWR is ≤1.08 from DC to 0.5 GHz and ≤1.15 from 0.5 to 1 GHz.
The body is brass with nickel plating, and the center contact is brass with gold plating. The insulator is PTFE, and the gasket is silicone rubber. The substrate is alumina with a thick film resistor element. The termination is designed for free-hanging mounting with a cap.
Operating and storage temperature range is -55°C to +125°C. The part weighs 13.65 g. Compliance information: RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited) — though these are unverified from the manufacturer page. The datasheet also provides a power derating curve relative to temperature.
| Qty | Low | High |
|---|---|---|
| 1+ | $47.19 | $47.19 |
| 10+ | $41.03 | $41.03 |
| 25+ | $37.82 | $37.82 |
| 50+ | $36.57 | $36.57 |
| 100+ | $35.38 | $35.38 |
| 250+ | $34.54 | $34.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
75 Ω.
DC to 1 GHz.
≤1.08 from DC to 0.5 GHz, ≤1.15 from 0.5 to 1 GHz.
1W average power (free air cooled at 25°C) and 500W peak power (1 µs pulse, 1% duty cycle at 25°C).
-55°C to +125°C.
BNC plug, male pin.
Free hanging, cap.
