Mfr Part #:

R316553000

Available from 1 distributors

Mfr Name: Radiall

BNC female receptacle, 50 Ohm, panel mount, solder cup termination, 2 GHz max frequency.

✓ Total Stock: 9 pcs

$ Price Range: $15.18 - $23.14

R316553000 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	9 pcs On Request	9 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

R316553000 Description

Short technical summary and product information.

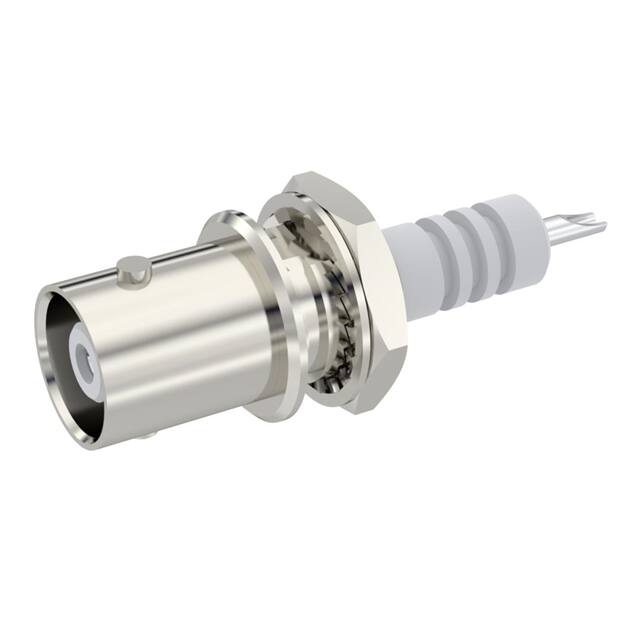

The R316553000 is a BNC female receptacle connector manufactured by Radiall. It features a 50 Ohm impedance and operates from DC to 2 GHz. The connector is designed for panel mount installation with a bulkhead rear side nut and uses a solder cup termination for the center contact and solder shield termination. The body is made of brass with nickel plating, while the center contact is beryllium copper with silver plating. The insulator is PTFE.

Electrical characteristics include a maximum VSWR of 1.2 + 0.2*F(GHz) and a dielectric withstanding voltage of 6000 V at 60 Hz. The operating temperature range is -55 to +155 °C. Mechanically, the connector supports a minimum mating life of 500 cycles and a center contact retention force of 27 N. The recommended panel nut torque is 320 N·cm. The connector weighs 7.61 g.

This receptacle is suitable for RF applications requiring a reliable 50 Ohm connection. It is commonly used in test equipment, telecommunications, and broadcast systems. The bayonet lock fastening type ensures quick and secure mating.

R316553000 Quick Information

Product Type: Coaxial Connector (RF) Assembly

Series: BNC-HT

Canonical Name: Radiall BNCHV 90530 F BHD BNC Female Bulkhead Receptacle

Subcategory: BNC Connector

R316553000 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

R316553000 Estimated Pricing

Qty	Low	High
1+	$23.14	$23.14
10+	$19.67	$19.67
25+	$18.44	$18.44
50+	$17.56	$17.56
100+	$16.97	$16.97
250+	$15.94	$15.94
500+	$15.18	$15.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

R316553000 Features

BNC female receptacle with 50 Ohm impedance.
Rated for 2 GHz maximum frequency.
Panel mount with solder cup termination.
Silver-plated beryllium copper center contact.
Robust brass body with nickel plating.

R316553000 Applications

Ideal for RF signal connections in test equipment.
Used in telecommunications infrastructure.
Suitable for high-frequency data transmission.
Common in broadcast and video applications.

R316553000 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the mounting type for this connector?

Panel mount with bulkhead rear side nut.

What is the impedance of this BNC connector?

50 Ohms.

What is the frequency range of the R316553000?

0 to 2 GHz.

What is the maximum VSWR?

1.2 + 0.2*F(GHz) Max.

What is the operating temperature range?

-55 to +155 °C.

How many mating cycles is this connector rated for?

500 cycles minimum.

What is the dielectric withstanding voltage?

6000 V at 60 Hz.

Category	Coaxial Connector (RF) Assemblies
Manufacturer Name	Radiall
Approval Agency	0 to 2 GHz
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Withstanding Voltage	6000 V
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency	2 GHz
Frequency Range	0 to 2 GHz
Housing Color	Silver
Impedance	50 Ohms
Insulator Material	PTFE
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature Range	-55 to +155 °C
SVHC Present	Not Present
Shield Termination	Solder
Tape & Reel	No
Termination Style	Solder Cup
VSWR	1.2 + 0.2*F(GHz) Max
Weight	7.61 g
