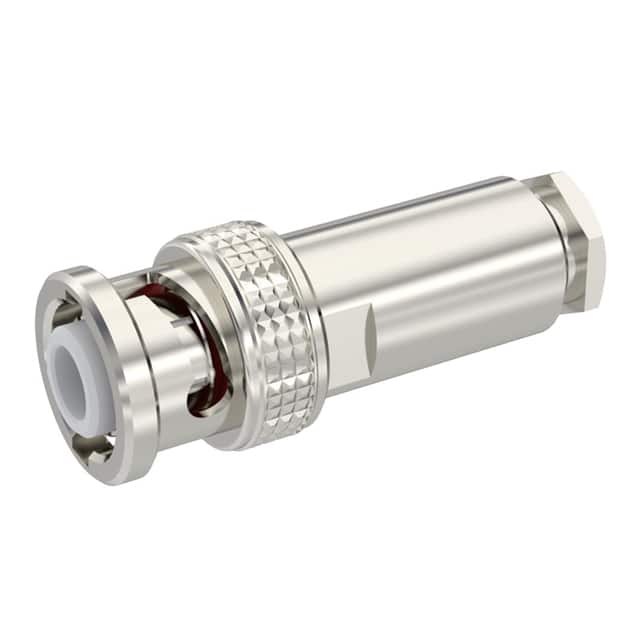

R316011000 Radiall R316011000 is a BNC straight plug connector with male pin, clamp termination, 50 Ohm impedance, and 2 GHz frequency rating.
Mfr Part #:

R316011000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R316011000 is a BNC straight plug connector with male pin, clamp termination, 50 Ohm impedance, and 2 GHz frequency rating.
✓ Total Stock: 310 pcs
$ Price Range: $26.08 - $38.37

R316011000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
310 pcs
On Request
310 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R316011000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Housing Color
Impedance
Insertion Loss
Insulator Material
Mating Cycles
Mounting Type
Number of Ports
Operating Temperature
Shield Termination
Tape & Reel
VSWR
Weight
View Similar Products (0)

R316011000 Description

Short technical summary and product information.

The Radiall R316011000 is a BNC straight plug connector designed for clamp termination on RG-59 and RG-62 cables. It features a male pin contact and bayonet lock fastening for secure connections. The connector offers 50 Ohm impedance and operates up to 2 GHz with a maximum VSWR of 1.2 + 0.2000 x F(GHz) and insertion loss of -√F(GHz) dB.



Constructed with a brass body nickel plated and a brass center contact silver plated, the insulator is PTFE for high temperature stability. The connector withstands dielectric voltage of 6000 Veff minimum and operates over a temperature range of -55°C to +155°C. It supports 500 mating cycles and has a cable retention pull-off force of 181 N minimum.



The clamp nut torque is specified at 150 N.cm with an A/F clamp nut size of 9.5 mm. Cable stripping dimensions are provided for easy assembly. The connector weighs 26.56 g and is packaged in standard quantities of 100 pieces.

R316011000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: W Series
Canonical Name: BNC Straight Plug, Male Pin, Clamp Termination, 50 Ohm
Subcategory: Straight Plug

R316011000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R316011000 Estimated Pricing

Qty Low High
1+ $38.37 $38.37
10+ $32.62 $32.62
25+ $31.07 $31.07
50+ $29.21 $29.21
100+ $27.81 $27.81
250+ $26.08 $26.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

R316011000 Features

  • BNC straight plug with male pin.
  • Clamp termination for RG-59/62 cables.
  • 50 Ohm impedance, 2 GHz max frequency.
  • Silver plated brass center contact.
  • PTFE insulator for high temperature.

R316011000 Applications

  • Used in RF test and measurement equipment.
  • Suitable for telecommunications infrastructure.
  • Ideal for video surveillance systems.
  • Common in broadcast and audio/video applications.

R316011000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the R316011000?

50 Ohm.

What is the maximum operating frequency?

2 GHz.

What is the mounting type?

Free hanging (in-line).

What cable types are compatible?

RG-59 and RG-62 cables.

What is the operating temperature range?

-55°C to +155°C.

What is the VSWR specification?

1.2 + 0.2000 x F(GHz) maximum over 0-2 GHz.

What is the insertion loss?

-√F(GHz) dB maximum over 0-2 GHz.
