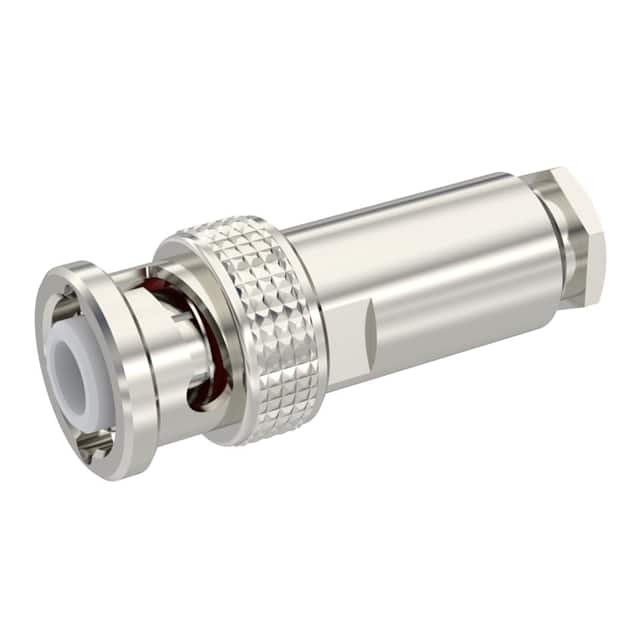

The Radiall R316007000 is a BNC straight plug connector from the BNC-HT / MHV series, designed for reliable RF connections in 50 Ohm systems. It features a male pin center contact made of brass with silver plating, housed in a nickel-plated brass body with a PTFE insulator. The connector uses a bayonet lock fastening type for quick and secure mating.
This plug is intended for free-hanging (in-line) mounting and terminates to the cable using a solder contact and clamp shield termination. It is compatible with cable groups RG-58, 141, 142, 223, and 400. The connector operates over a frequency range of 0 to 2 GHz, with a maximum VSWR of 1.2 + 0.2000 x F(GHz) and a maximum insertion loss of √F(GHz) dB.
Mechanically, the connector is rated for a minimum of 500 mating cycles and a cable retention force of 90 N. The clamp nut torque is specified at 150 N.cm with an A/F dimension of 9.5 mm. The operating temperature range is -55°C to +155°C, and the connector weighs 18.17 g.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.80 | $25.80 |
| 10+ | $21.92 | $21.92 |
| 25+ | $20.29 | $20.29 |
| 250+ | $17.47 | $17.47 |
| 500+ | $16.64 | $16.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The maximum frequency is 2 GHz.
It is compatible with cable groups RG-58, 141, 142, 223, and 400.
The operating temperature range is -55°C to +155°C.
It is rated for a minimum of 500 mating cycles.
The mounting type is Free Hanging (In-Line).
