| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
470 pcs
|
470 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Between Board Height | |
| Diameter | |
| Finish | |
| Gender | |
| Length | |
| Material | |
| Plating | |
| Screw, Thread Size | |
| Threaded | |
| Type |

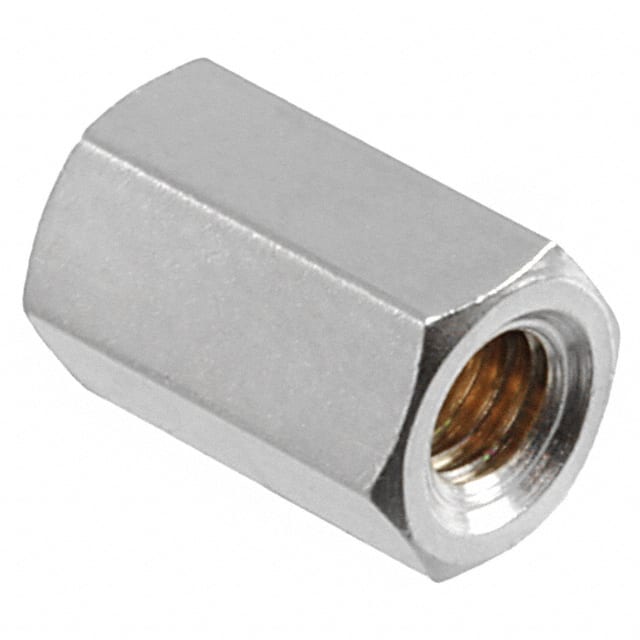

This Harwin Inc. R30-1000802 is a metric brass hex standoff designed for board-to-board spacing applications. It features female-female threading with an M3x0.5 size and a body length of 8mm. The standoff has a hexagonal profile with a 5mm A/F (across flats) dimension, providing a secure grip for installation.
The base material is brass, finished with nickel plating to enhance corrosion resistance. This component is classified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Its threaded design and specific dimensions make it suitable for various electronic assemblies requiring precise component spacing and mounting.
This standoff is part of the R30 series, offering a reliable solution for mechanical support and electrical isolation between printed circuit boards or other components. The female threads at both ends allow for secure fastening with appropriate male-threaded hardware.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The R30-1000802 standoff features an M3x0.5 thread size.
The standoff is constructed from brass with a nickel finish.
The body length of this standoff is 8.00mm.
The hex size across flats is 5.00mm.
Yes, the R30-1000802 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
