| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Fin Height | |
| Length | |
| Material | |
| Material Finish | |
| Package Cooled | |
| Power Dissipation @ Temperature Rise | |
| Shape | |
| Thermal Resistance @ Forced Air Flow | |
| Thermal Resistance @ Natural | |
| Type | |
| Width |

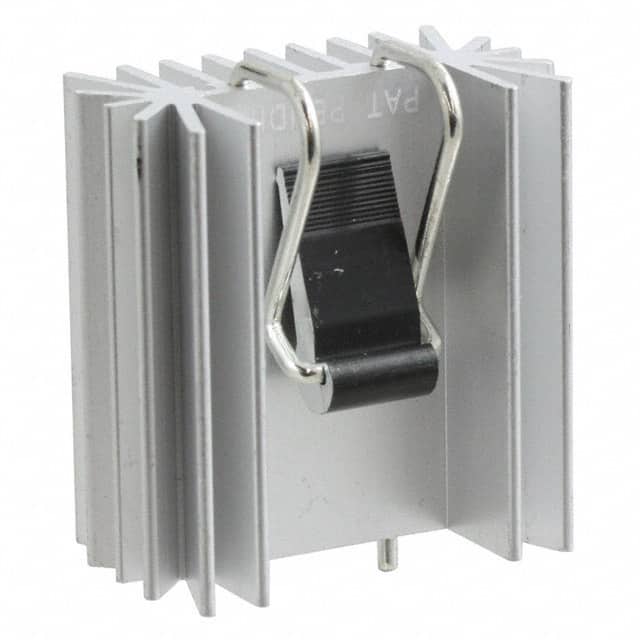

The Ohmite R2V-CT4-38E is a board-level heat sink engineered for effective thermal dissipation in electronic applications. Designed specifically for the TO-247 package, this heat sink ensures optimal performance by drawing heat away from critical components.
Constructed from aluminum with a degreased finish, the R2V-CT4-38E features a rectangular, finned shape for enhanced surface area and cooling efficiency. Its dimensions include a length of 38.10mm (1.500"), a width of 35.05mm (1.380"), and a fin height of 22.10mm (0.870").
This heat sink provides a thermal resistance of 9.80°C/W under natural convection and 1.00°C/W at an airflow of 800 LFM. It supports a power dissipation of 2.0W at a 20°C temperature rise. The attachment method utilizes a clip and PC pin system, facilitating secure mounting to the PCB.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The R2V-CT4-38E is suitable for applications requiring reliable thermal management for TO-247 devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thermal resistance of the R2V-CT4-38E heat sink under natural conditions is 9.80°C/W.
The Ohmite R2V-CT4-38E heat sink is designed for the TO-247 package.
The Ohmite R2V-CT4-38E heat sink is made of aluminum.
The length of the Ohmite R2V-CT4-38E heat sink is 38.10mm (1.500").
The Ohmite R2V-CT4-38E heat sink is attached using a clip and PC pin method.
