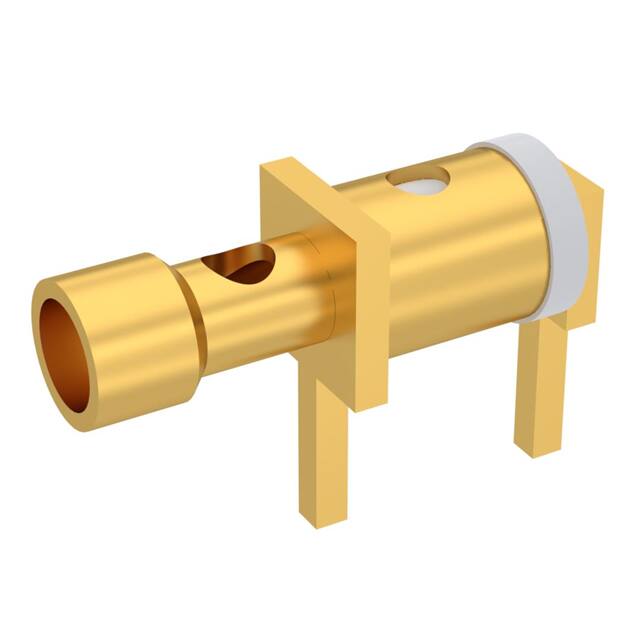

The Radiall R280220027 is a non-magnetic right angle feedthrough designed for PCB cable applications. It belongs to the ACC-COAX series and offers a 50Ω impedance with a frequency range from DC to 3 GHz. The connector features a bronze body and center contact with gold plating, ensuring reliable electrical performance and corrosion resistance. The insulator is made of PTFE, providing excellent dielectric properties.
Electrical characteristics include a voltage rating of 335 Veff max and a dielectric withstanding voltage of 1000 Veff mini. Insulation resistance is 1000 MΩ mini. The component is rated for operating temperatures from -55°C to +155°C, making it suitable for demanding environments.
Mechanically, the connector uses through-hole right angle mounting with solder termination. It has a cable retention force of 120 N mini and weighs 0.49 g. The part is designed for use with RG 179 AMAG and RG 316 AMAG cables. Its non-magnetic construction ensures minimal magnetic field distortion, specified as <0.5 ppm at 10mm at Bo=1.5 Tesla.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.27 | $22.27 |
| 10+ | $18.93 | $18.93 |
| 20+ | $17.75 | $17.75 |
| 50+ | $16.90 | $16.90 |
| 100+ | $15.93 | $15.93 |
| 200+ | $15.42 | $15.42 |
| 500+ | $14.97 | $14.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ω.
DC to 3 GHz.
-55°C to +155°C.
335 Veff max.
Through hole, right angle.
RG 179 AMAG and RG 316 AMAG.
RoHS3 Compliant (unverified).
