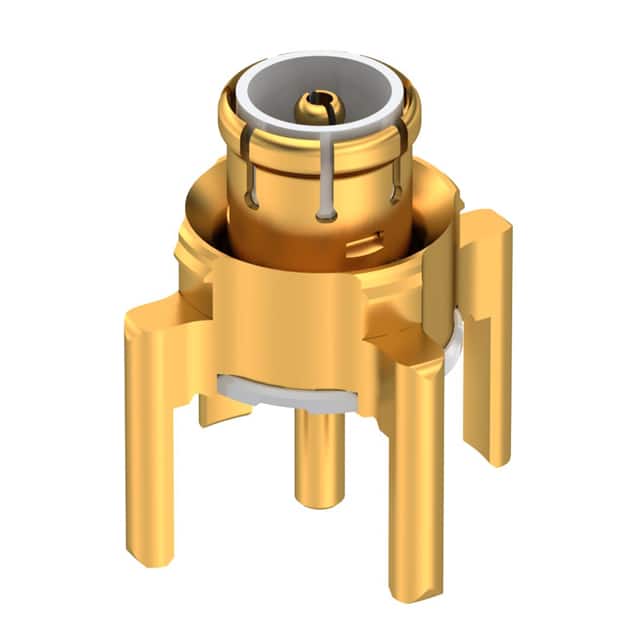

The Radiall R223435000 is an MMBX straight plug receptacle with a male pin contact, designed for through hole solder mounting on PCBs. It features a snap-on fastening mechanism and a gold-plated body made of beryllium copper and brass, with an insulator of liquid crystal polymer (LCP) and PTFE.
Electrical characteristics include 50 Ohm impedance, operating from DC to 12.4 GHz. Maximum VSWR is 1.083 (0-6 GHz), insertion loss is 0.12 sqrt(F) dB, and RF leakage is -(100 - F(GHz)) dB. The connector is rated for 330 Veff voltage with a dielectric withstanding voltage of 1000 Veff and insulation resistance of 1000 MOhm minimum.
Mechanically, the center contact retention force is 10 N minimum at both ends, and the connector is rated for 100 mating cycles minimum. Weight is 0.47 g. Operating temperature range is -55 to +155 °C. Standard package quantity is 100 units.
This connector is suitable for high-reliability RF applications requiring consistent performance up to 12.4 GHz, such as telecom, military, and test equipment.
