| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

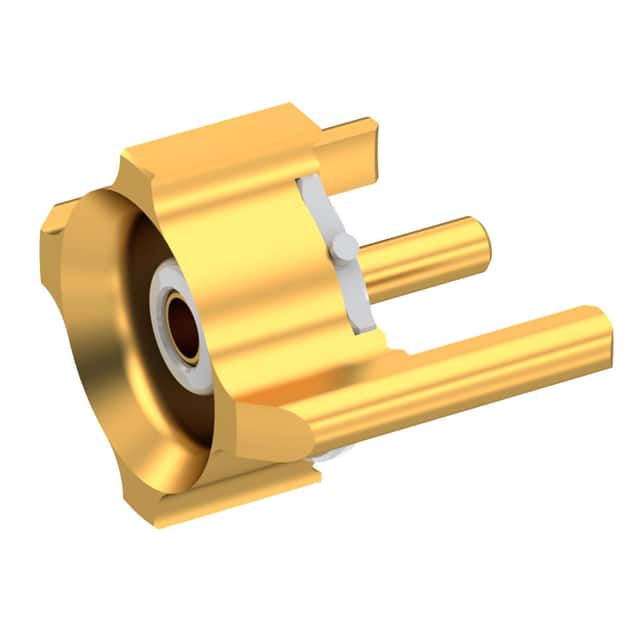

The Radiall R223425000 is an MMBX straight jack receptacle designed for RF interconnect applications. It uses a female socket contact with snap-on fastening and provides 50 Ohm characteristic impedance. The connector supports frequencies up to 12.4 GHz, making it suitable for high-frequency signal transmission.
This through hole mount connector uses solder termination for both the center contact and shield. The center contact is made of brass, and the housing has a gold color finish. It is a single-port configuration.
The connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is also REACH unaffected. These compliance statuses are unverified and should be confirmed with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.96 | $8.96 |
| 10+ | $7.62 | $7.62 |
| 20+ | $7.14 | $7.14 |
| 50+ | $6.80 | $6.80 |
| 100+ | $6.47 | $6.47 |
| 200+ | $5.99 | $5.99 |
| 500+ | $5.77 | $5.77 |
| 1,000+ | $5.50 | $5.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohm.
The maximum frequency is 12.4 GHz.
Through hole mounting.
Solder termination for both contact and shield.
MMBX style, jack with female socket.
