| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
478 pcs
|
478 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Center Contact Material | |
| Center Contact Plating | |
| Connector Type | |
| Contact Plating | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature | |
| Shield Termination | |
| Tape & Reel | |
| VSWR | |
| Voltage Rating | |
| Weight |

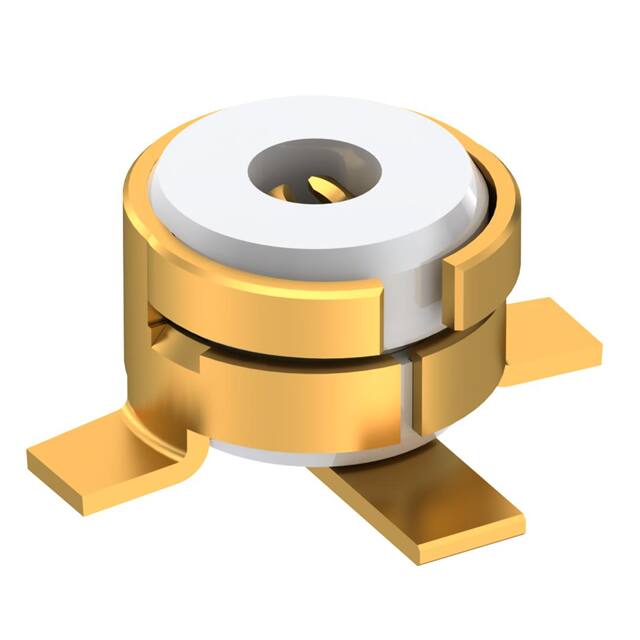

The Radiall R210408012 is a straight jack receptacle from the MMT series, designed for RF applications requiring 50 Ohm impedance and operation up to 8 GHz. This female socket connector features a surface mount (SMT) solder termination and snap-on fastening mechanism, ensuring secure mating.
Electrical characteristics include a maximum VSWR of 1.10 + 0.0500 x F(GHz) and insertion loss of 0.20 √F(GHz) dB across the 0-8 GHz frequency range. The connector is rated for a voltage of 170 Veff, with a dielectric withstanding voltage of 500 Veff and insulation resistance of 5000 MOhm minimum.
Mechanically, the connector is built with a phosphor bronze body, brass center contact, and PTFE insulator, all plated with gold over nickel for corrosion resistance and low contact resistance. It supports up to 500 mating cycles, with a mating force of 18 N maximum and unmating force of 7 N minimum. The operating temperature range is -55 to +100 °C. Weight is 0.1 g.
Packaged in reels of 100 units, the R210408012 is suitable for high-volume automated assembly. Its compact SMT design makes it ideal for dense PCB layouts in telecommunications, test equipment, and aerospace systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.36 | $8.36 |
| 10+ | $7.57 | $7.57 |
| 20+ | $7.15 | $7.15 |
| 50+ | $6.97 | $6.97 |
| 100+ | $6.61 | $6.61 |
| 200+ | $5.19 | $5.19 |
| 500+ | $4.89 | $4.89 |
| 1,000+ | $4.42 | $4.42 |
| 2,000+ | $4.33 | $4.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
0 to 8 GHz.
170 Veff maximum.
Surface Mount (SMT).
-55 to +100 °C.
Maximum VSWR is 1.10 + 0.0500 x F(GHz) over the 0-8 GHz range.
500 cycles minimum.
