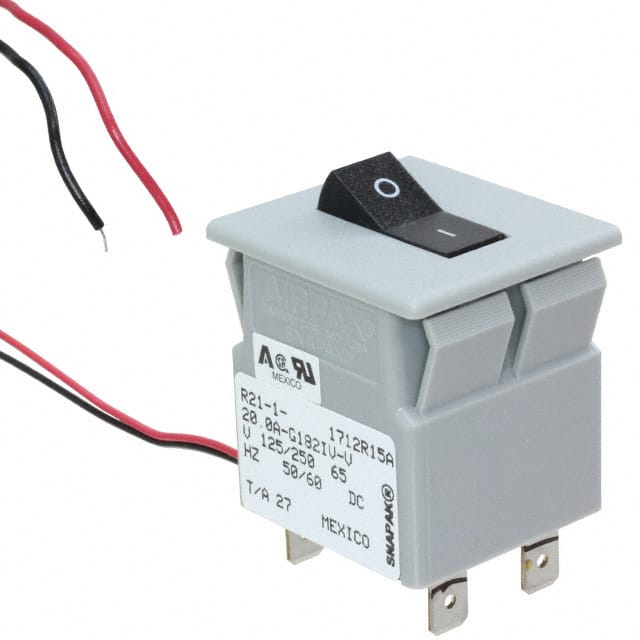

R21-1-20.0A-G182IV-V The Sensata R21-1-20.0A-G182IV-V is a 2-pole circuit breaker featuring a 20A current rating and magnetic hydraulic delay. It is designed for panel mounting.
Mfr Part #:

R21-1-20.0A-G182IV-V

Mfr Name: Sensata
Sensata
The Sensata R21-1-20.0A-G182IV-V is a 2-pole circuit breaker featuring a 20A current rating and magnetic hydraulic delay. It is designed for panel mounting.
Stock on Request

R21-1-20.0A-G182IV-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Illumination Voltage (Nominal)
Mounting Type
Number of Poles
View Similar Products (0)

R21-1-20.0A-G182IV-V Description

Short technical summary and product information.

This Sensata R21-1-20.0A-G182IV-V is a 2-pole circuit breaker with a 20A current rating. It utilizes a magnetic hydraulic delay mechanism for reliable operation.



The breaker is designed for panel mounting, making it suitable for integration into various control panels and equipment. It features a rocker actuator type and green illumination with a nominal voltage of 250V.



Environmental compliance includes RoHS3 status. The Moisture Sensitivity Level (MSL) is rated as 1, indicating unlimited shelf life under standard conditions. REACH status is unaffected.



This component is part of the R21 series, offering robust circuit protection for electrical systems.

R21-1-20.0A-G182IV-V Quick Information

Product Type: Circuit Breaker
Series: R21
Canonical Name: Sensata R21-1-20.0A-G182IV-V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic Hydraulic Delay

R21-1-20.0A-G182IV-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R21-1-20.0A-G182IV-V Features

  • 20A current rating for protection.
  • Magnetic hydraulic delay mechanism.
  • Panel mount for easy integration.
  • Rocker actuator for operation.
  • Green illumination at 250V.

R21-1-20.0A-G182IV-V Applications

  • Industrial control panels.
  • Power distribution systems.
  • Equipment protection circuits.
  • Automation machinery.

R21-1-20.0A-G182IV-V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of this circuit breaker?

20A.

What type of breaker is this?

Magnetic (Hydraulic Delay).

How many poles does it have?

2 poles.

What is the mounting type?

Panel Mount.

What is the actuator type?

Rocker.

Is the actuator illuminated?

Yes, green illumination at 250V.
