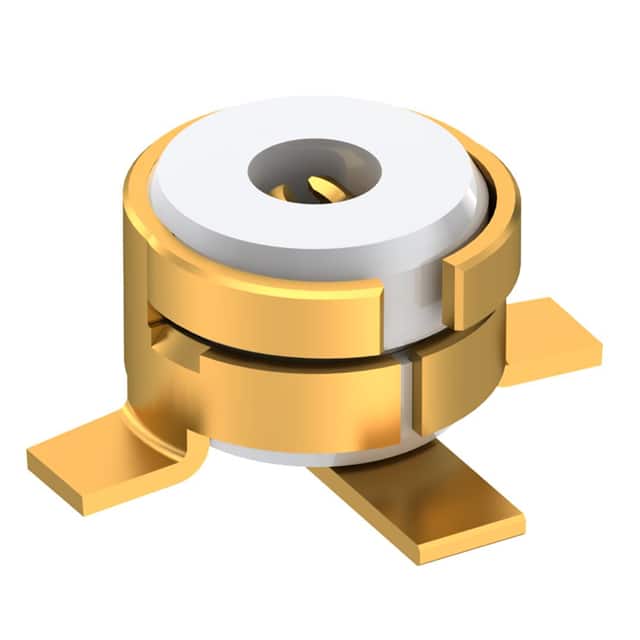

R209408052 Radiall R209408052 is a 50 Ohm MMS series straight jack receptacle for PCB surface mount, operating from DC to 6 GHz. It features a gold-plated phosphor bronze body and beryllium copper center contact with solder termination.
Mfr Part #:

R209408052

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R209408052 is a 50 Ohm MMS series straight jack receptacle for PCB surface mount, operating from DC to 6 GHz. It features a gold-plated phosphor bronze body and beryllium copper center contact with solder termination.
✓ Total Stock: 104 pcs
$ Price Range: $4.08 - $7.08

R209408052 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
104 pcs
On Request
104 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R209408052 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Body Material
Center Contact Material
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Frequency Range
Housing Color
Impedance
Insulation Resistance
Insulator Material
Mating Cycles
Mounting Type
Number of Ports
Operating Temperature Range
Shield Termination
Tape & Reel
Termination Style
VSWR
Voltage Rating
Weight
View Similar Products (0)

R209408052 Description

Short technical summary and product information.

The Radiall R209408052 is a 50 Ohm coaxial connector from the MMS series, designed as a straight jack receptacle for surface mount PCB applications. It operates over a frequency range of DC to 6 GHz, making it suitable for RF and microwave circuits.



Electrical characteristics include a typical VSWR of 1.07 (1-2 GHz) and insertion loss typically 0.06 dB (max 0.07 dB). The connector is rated for 50 Veff maximum voltage and dielectric withstanding voltage of 250 Veff. Insulation resistance is at least 500 MOhm. Mechanically, the connector features a snap-on fastening type, gold-plated phosphor bronze body, and PTFE insulator. Center contact is beryllium copper with gold plating. It offers a minimum of 50 mating cycles and weighs only 0.059 g.



The connector is supplied in tape and reel packaging with a standard quantity of 500 units per reel. Termination is solder for both center contact and shield. Operating temperature range is -40°C to +125°C.

R209408052 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: MMS
Canonical Name: Radiall R209408052 MMS Series Straight Jack Receptacle, 50 Ohm, SMT, 0-6 GHz
Subcategory: Straight Jack Receptacle

R209408052 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R209408052 Estimated Pricing

Qty Low High
1+ $7.08 $7.08
10+ $6.40 $6.40
25+ $6.05 $6.05
50+ $5.90 $5.90
100+ $5.61 $5.61
250+ $5.02 $5.02
500+ $4.49 $4.49
1,000+ $4.19 $4.19
2,500+ $4.08 $4.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

R209408052 Features

  • 50 Ohm characteristic impedance.
  • Frequency range DC to 6 GHz.
  • Low insertion loss of 0.06 dB typical.
  • Surface mount solder termination.
  • Gold-plated contacts for reliability.

R209408052 Applications

  • Ideal for RF signal interconnects in SMT designs.
  • Used in wireless communication modules.
  • Suitable for test and measurement equipment.
  • Applicable in aerospace and defense systems.

R209408052 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of this connector?

50 Ohms.

What is the frequency range?

DC to 6 GHz.

What is the voltage rating?

50 Veff maximum.

What is the mounting type?

Surface Mount.

What is the operating temperature range?

-40°C to +125°C.

What is the insertion loss?

Typical 0.06 dB, maximum 0.07 dB.

What connector type is this?

Jack, Male Pin with snap-on fastening.
