| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

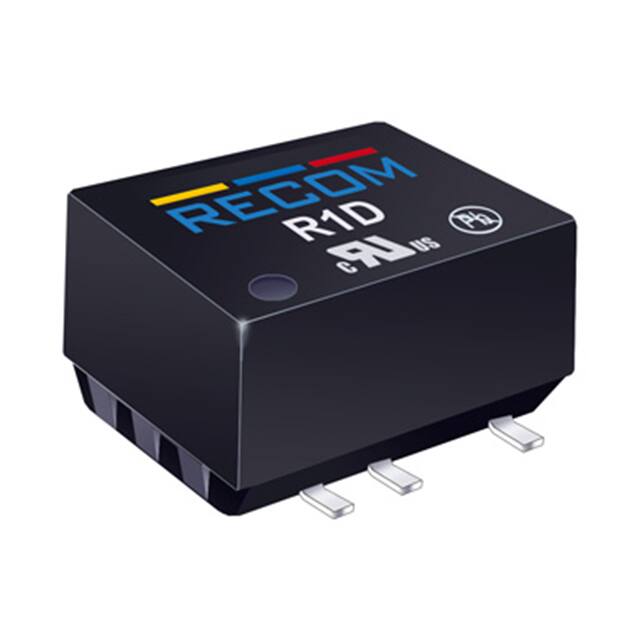

The R1D-0505/P is an isolated DC/DC converter from Recom Power's R1D series, designed for general purpose and industrial low power isolation and voltage matching applications. It provides dual ±5V outputs at 100mA each, with a total output power of 1W. The converter operates from a nominal 5V input and achieves typical efficiency of 78%.
Key electrical specifications include 1kVDC isolation voltage, short circuit protection, and a maximum capacitive load of ±1000µF per output. The unregulated design is suitable for applications where load regulation is not critical. The operating temperature range spans -40°C to 100°C without derating.
The converter is housed in a 10-SMD module with 6 leads, measuring 15.2mm x 10.7mm x 7.0mm. It is surface-mountable and compatible with automated assembly processes including vapor phase soldering. The component is RoHS2+ and REACH compliant, with UL/EN60950-1 certifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.18 | $10.18 |
| 5+ | $9.81 | $9.81 |
| 10+ | $9.65 | $9.65 |
| 25+ | $9.44 | $9.44 |
| 50+ | $9.28 | $9.28 |
| 99+ | $9.13 | $9.13 |
| 264+ | $8.82 | $8.82 |
| 528+ | $8.57 | $8.57 |
| 1,023+ | $8.56 | $8.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage is 5 VDC nominal. The output is dual ±5 VDC.
It comes in a 10-SMD Module with 6 leads.
The operating temperature range is -40°C to 100°C.
Yes, it is RoHS2+ and REACH compliant as verified from the datasheet.
Each output provides 100 mA.
It provides 1 kVDC isolation.
Typical efficiency is 78%.
