| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Prop 65 | |
| Voltage Rating |

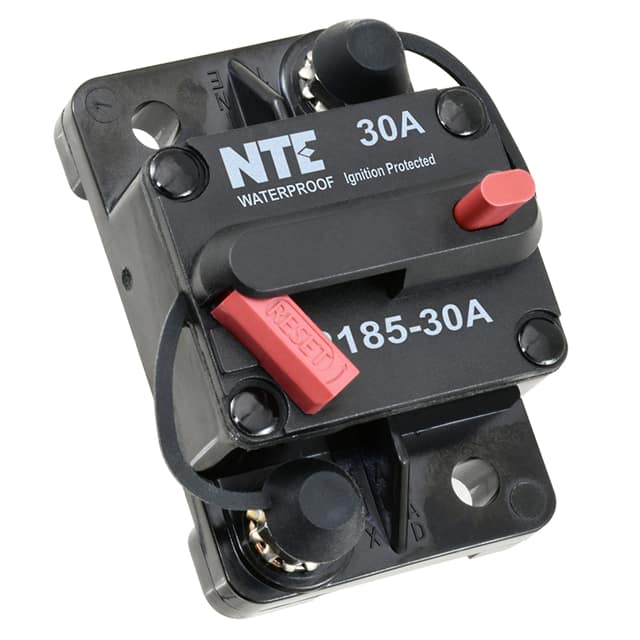

The NTE Electronics R185-30A is a thermal circuit breaker designed for DC power systems. It offers a current rating of 30 amps and a voltage rating of 48V.
This single-pole breaker features a manual reset actuator and a push-to-trip switch. It is designed for surface mounting and includes a protective stud insulator. The breaker is also IP67 water-resistant and ignition protected, making it suitable for various applications.
Key specifications include a 30A current rating and a 48V voltage rating. The mounting type is surface mount, and it is approved by CE and SAEJ1171. The R185-30A is part of the NTE Electronics R185 Series Hi-Amp Thermal Circuit Breakers.
Applications for this circuit breaker include shack, automotive, marine, or RV power system projects. Its robust construction and environmental resistance make it a reliable choice for demanding environments.
The NTE Electronics R185-30A has a current rating of 30 amps.
The voltage rating for the R185-30A circuit breaker is 48 V.
The R185-30A is a thermal circuit breaker.
The NTE Electronics R185-30A is a single pole circuit breaker.
The actuator type for the R185-30A is push to reset.
The R185-30A can be mounted using surface mount or chassis mount methods.
The R185-30A is approved by CE and SAEJ1171.
Yes, the R185-30A is IP67 water resistant.
Yes, the R185-30A is ignition protected.
The stud size on the R185-30A is 1/4 inch.
The stud thread size for the R185-30A is 1/4-28.
