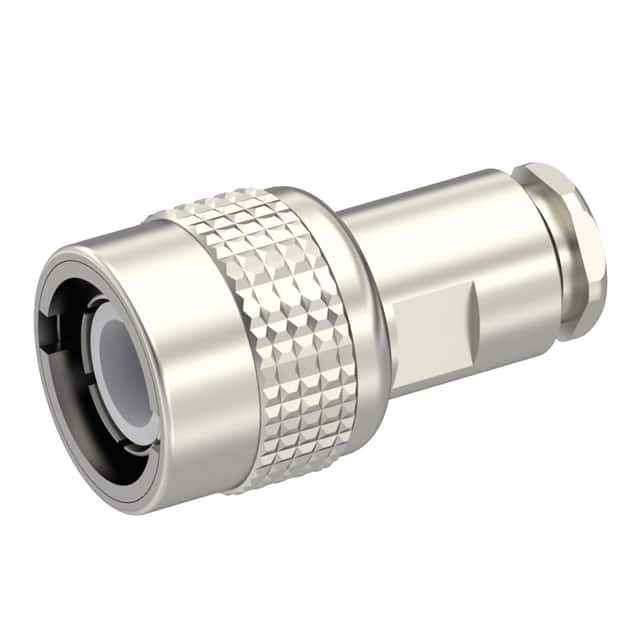

R166005000 Radiall R166005000 is a C Type straight plug coaxial connector with 50 Ohm impedance, rated for 11 GHz. It features threaded coupling, solder contact termination, and clamp shield termination for RG-58 and RG-141 cables.
Mfr Part #:

R166005000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R166005000 is a C Type straight plug coaxial connector with 50 Ohm impedance, rated for 11 GHz. It features threaded coupling, solder contact termination, and clamp shield termination for RG-58 and RG-141 cables.
✓ Total Stock: 1 pcs
$ Price Range: $139.96

R166005000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R166005000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

R166005000 Description

Short technical summary and product information.

The Radiall R166005000 is a C Type straight plug coaxial connector designed for free hanging (in-line) mounting. It provides a 50 Ohm impedance and supports frequencies up to 11 GHz, making it suitable for RF applications requiring reliable signal integrity.



This connector uses a threaded fastening mechanism for secure coupling and features a solder contact termination with a clamp shield termination. The center contact is made of brass, and the housing has a silver color. It is compatible with RG-58 and RG-141 cable groups.



The R166005000 is a single-port, male pin plug connector. Its robust mechanical design ensures a durable connection in various RF system assemblies.

R166005000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: Radiall R166005000 C Type Straight Plug Coaxial Connector
Subcategory: C Type Plug

R166005000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R166005000 Estimated Pricing

Qty Low High
10+ $139.96 $139.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

R166005000 Features

  • C Type straight plug coaxial connector.
  • 50 Ohm impedance for RF applications.
  • 11 GHz maximum frequency rating.
  • Threaded coupling for secure connection.
  • Solder contact and clamp shield termination.

R166005000 Applications

  • Suitable for RF signal transmission up to 11 GHz.
  • Used in telecommunications and test equipment.
  • Ideal for cable assembly with RG-58 and RG-141.

R166005000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R166005000 connector?

The impedance is 50 Ohm.

What is the maximum frequency of the R166005000?

The maximum frequency is 11 GHz.

What type of connector is the R166005000?

It is a C Type straight plug, male pin connector.

What cable groups is the R166005000 compatible with?

It is compatible with RG-58 and RG-141 cable groups.

What is the mounting type for this connector?

The mounting type is Free Hanging (In-Line).

What is the fastening type of the R166005000?

The fastening type is Threaded.
