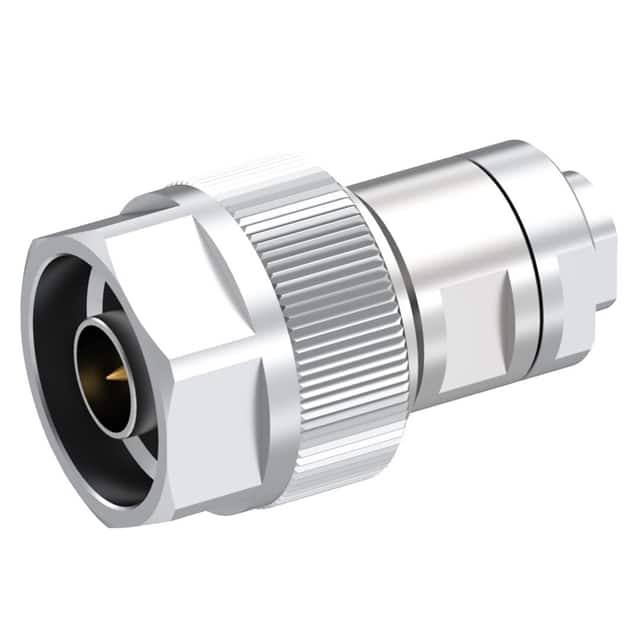

R163051001 Radiall R163051001 is an N Type straight plug RF connector with solder termination, designed for RG-402 (.141" semi-rigid) cable. It features 50 Ohm impedance, DC to 18 GHz frequency range, and IP67 ingress protection.
Mfr Part #:

R163051001

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R163051001 is an N Type straight plug RF connector with solder termination, designed for RG-402 (.141" semi-rigid) cable. It features 50 Ohm impedance, DC to 18 GHz frequency range, and IP67 ingress protection.
✓ Total Stock: 2 pcs
$ Price Range: $343.67

R163051001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R163051001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Housing Color
Impedance
Ingress Protection
Insertion Loss
Insulation Resistance
Insulator Material
Mounting Type
Number of Ports
Operating Temperature
Shield Termination
VSWR
Voltage Rating
Weight
View Similar Products (0)

R163051001 Description

Short technical summary and product information.

The Radiall R163051001 is an N Type straight plug RF connector designed for use with RG-402 (.141 inch) semi-rigid cable. It is a 50 Ohm connector with a frequency range from DC to 18 GHz, making it suitable for a wide variety of RF applications.



Electrical specifications include a maximum VSWR of 1.05 + 0.007 x F(GHz), insertion loss of 0.1 √F(GHz) dB, and RF leakage of -(92-F(GHz)) dB. The connector is rated for a maximum voltage of 500 Veff and a dielectric withstanding voltage of 1500 Veff minimum. Insulation resistance is 5000 MOhm minimum.



Mechanically, the connector features a stainless steel body with a passivated finish, a beryllium copper center contact with gold plating (1.3 µm over 2 µm nickel), and PTFE/ULTEM insulators. The connector is threaded for fastening and has a solder contact termination and shield termination. It is designed for free hanging (in-line) mounting and has a mating life of 500 cycles minimum. Recommended mating torque is 160 N.cm, and clamp nut torque is 200 N.cm.



Environmental ratings include an operating temperature range of -40 to +125°C and an IP67 ingress protection rating (dust tight and waterproof). The connector weighs 46.800 g.

R163051001 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: N-18
Canonical Name: Radiall R163051001 N Type Straight Plug, Solder Type for RG-402 (.141") Semi-Rigid Cable
Subcategory: Straight Plug

R163051001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R163051001 Estimated Pricing

Qty Low High
10+ $343.67 $343.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

R163051001 Features

  • N Type straight plug for RG-402 semi-rigid cable.
  • 50 Ohm impedance with DC to 18 GHz frequency range.
  • Low VSWR and insertion loss performance.
  • Gold-plated beryllium copper center contact.
  • IP67 rated for dust and water protection.

R163051001 Applications

  • Ideal for RF communication systems up to 18 GHz.
  • Suitable for test and measurement equipment.
  • Used in aerospace and defense applications.
  • Works in harsh environments with IP67 rating.

R163051001 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R163051001?

50 Ohm.

What is the frequency range of this connector?

DC to 18 GHz.

What is the maximum voltage rating?

500 Veff maximum.

What is the mounting type for this connector?

Free hanging (in-line).

What cable type is this connector compatible with?

RG-402 (.141" semi-rigid) cable.

What is the operating temperature range?

-40 to +125 °C.

What is the mating life of this connector?

500 cycles minimum.
